KGS ELECTRONICS Aircraft Static Inverter Model SPC-60(H)
| Make | KGS ELECTRONICS |
|---|---|
| Model | Aircraft Static Inverter Model SPC-60(H) |
| Condition | Used |
| Location | Boca Raton, FL , US |
| Date Listed | Aug 6, 2026 |
| Expires | Sep 5, 2026 |
Description
KGS Electronics SPC-60(H) Aircraft Static Inverter
Electrical Specifications:
• Input: 28 VDC nominal
• Input operating range: 22–30 VDC
• Output: 115 VAC
• Output frequency: 400 Hz ±1%
• Phase: Single-phase
• Waveform: Sine wave
• Series power rating: 600 VA
• Typical efficiency: 70%
• Manufacturer: KGS Electronics
• Model: SPC-60(H)
Condition:
This inverter was removed during an aircraft modification and is being sold as a repairable core. It was not removed because of a known failure.
The unit has not been bench-tested since removal. No FAA Form 8130-3, maintenance records, or time/cycle history are included. It will require inspection and testing by an appropriately authorized repair facility before being approved for return to service.

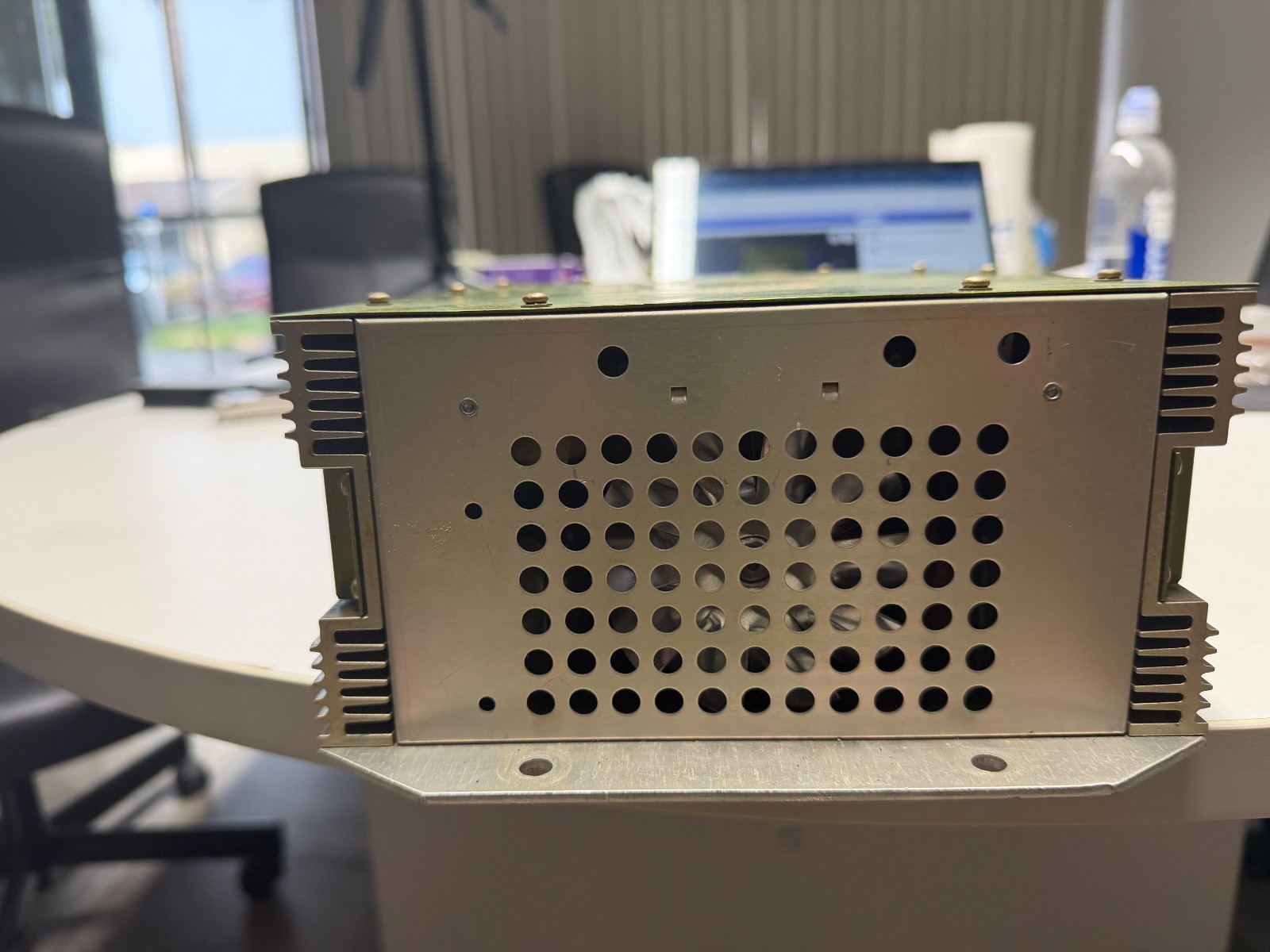

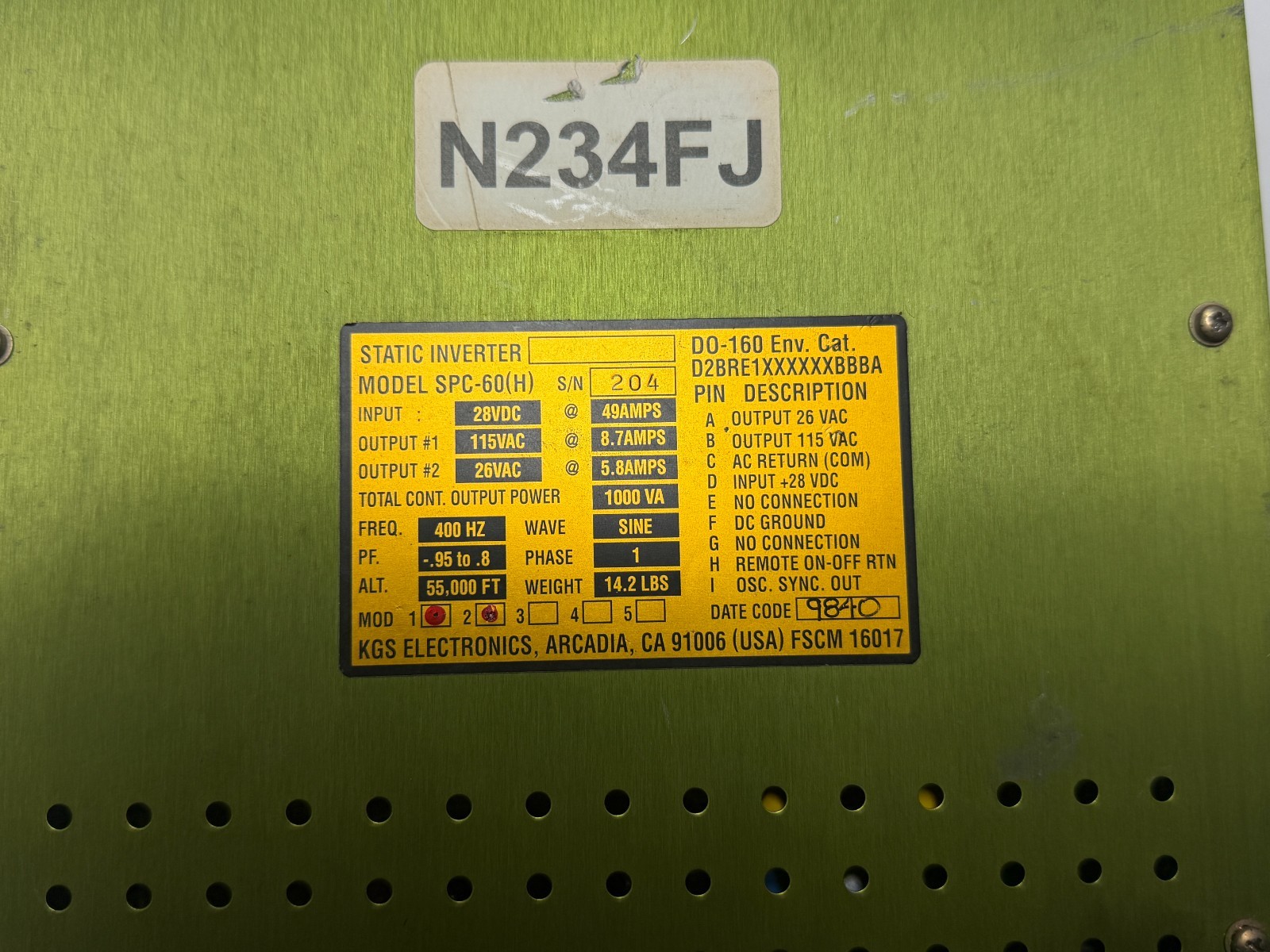

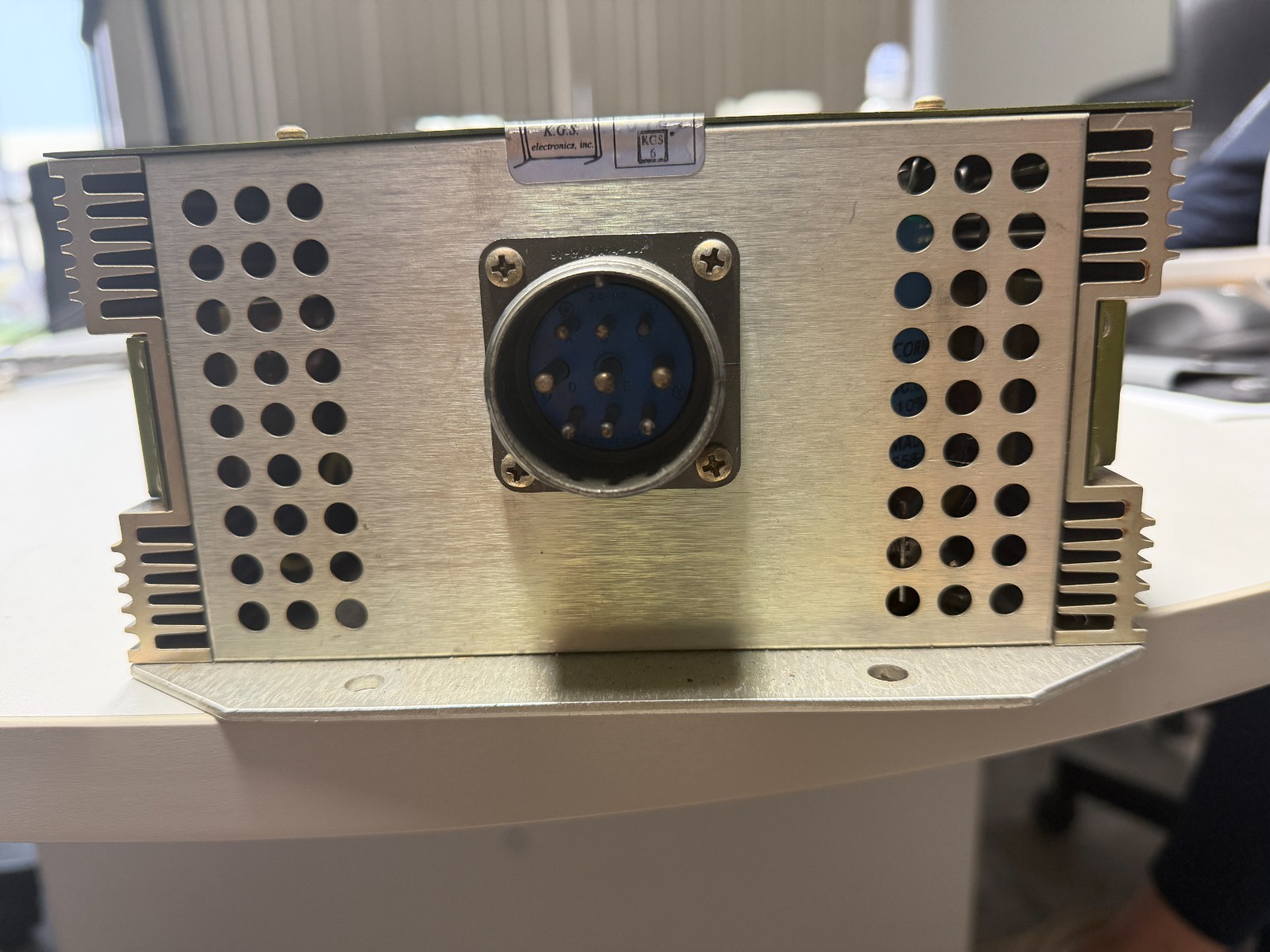

Please review the photographs, data plate, model number, part number, serial number, and connector configuration carefully to confirm compatibility. Additional photographs and measurements are available upon request.
Sold AS-IS as an untested repairable core.
