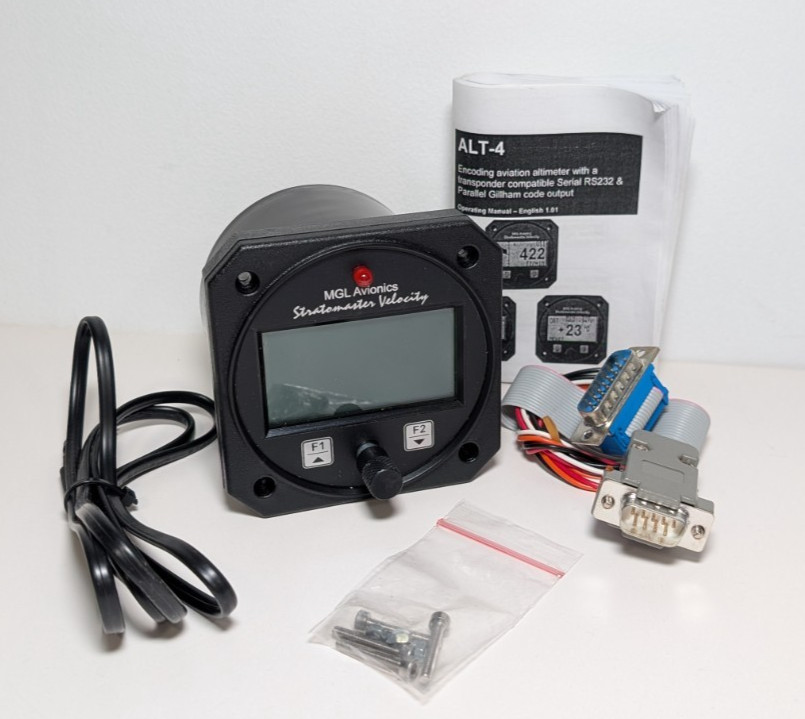

Mgl Avionics ALT-4 ALTIMETER

Description

Mgl Avionics ALT-4 ALTIMETER — $220.

Specs

• Make / Model: Mgl Avionics ALT-4 ALTIMETER
• Condition: New
• Location: Sharpsburg, GA

Summary

Light weight design. Large backlit graphic LCD with adjustable contrast. Standard 3 1/8” aircraft enclosure (can be front or rear mounted).

Description

Precision altimeter from –700 ft up to a maximum of 30 000 ft (-213m to 9144m)

Provides a transponder compatible Serial RS232 and parallel gillham code output.

Built in encoder test functions

The altimeter can display altitude in feet or meters, local pressure can be set in millibars or inches of

mercury

Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10 000 ft/min

VSI units can be in feet/minute (ft/min) or in meters/second (m/s)

Records the maximum and minimum OAT (outside air temperature) and maximum altitude reached in

permanent memory

Records maximum and minimum OAT in temporary memory since instrument power up

Standard 3 1/8” aircraft enclosure (can be front or rear mounted)

Rotary control plus 2 independent buttons for easy menu navigation and user input

Alarm output as well as a red LED illuminates when the alarm has been activated

Large backlit graphic LCD with adjustable contrast

Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection

for harsh electrical environments

Light weight design

Field upgradeable firmware
