Beechcraft P/N 35-815115 Main Gear Up

Description

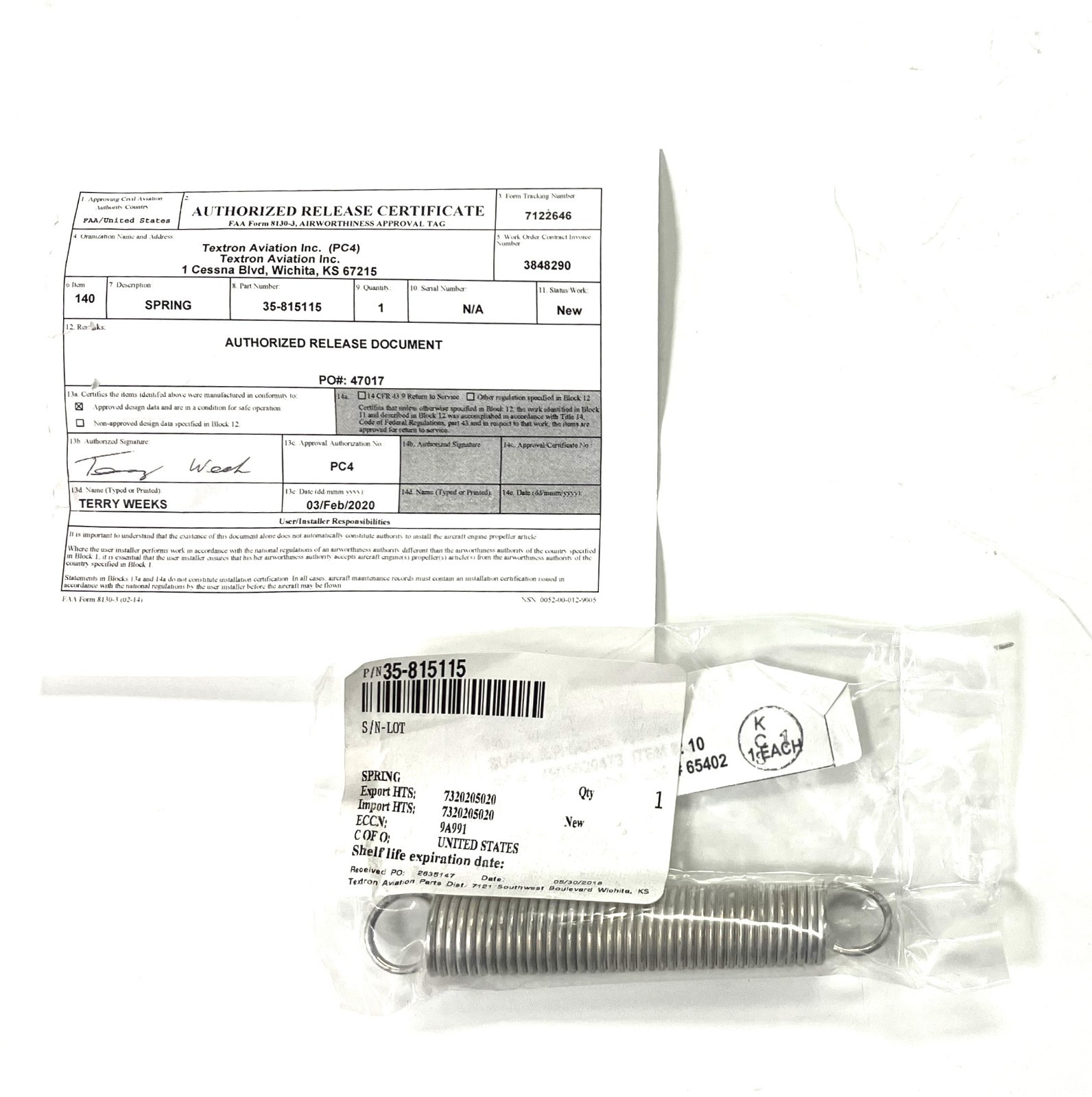

Beechcraft P/N 35-815115 Main Gear Up Lock Spring
New (Old) Surplus - In Original, Unopened Package

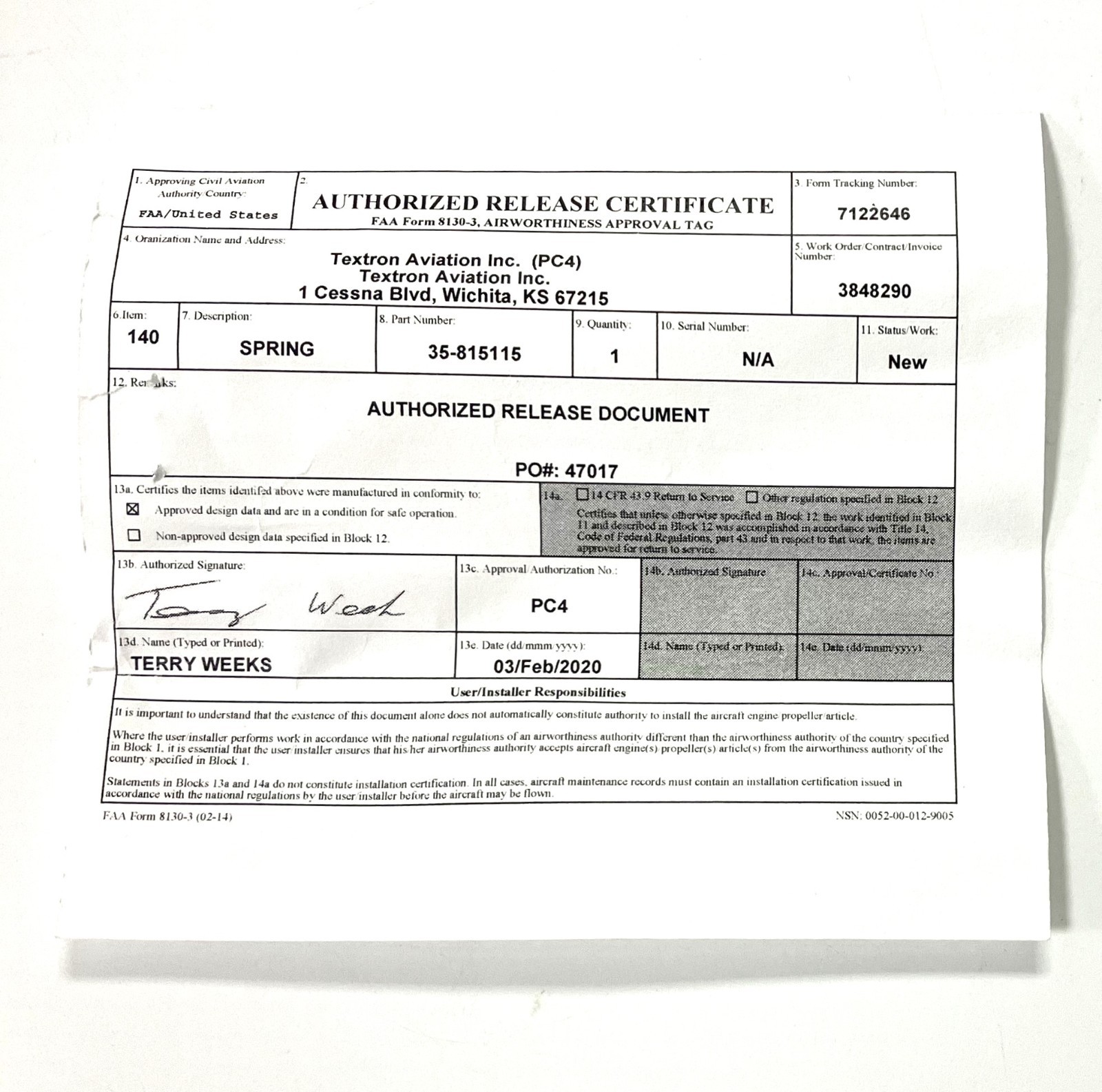

Comes with 8130-3 Airworthiness Approval Tag - Dated 03/Feb/2020

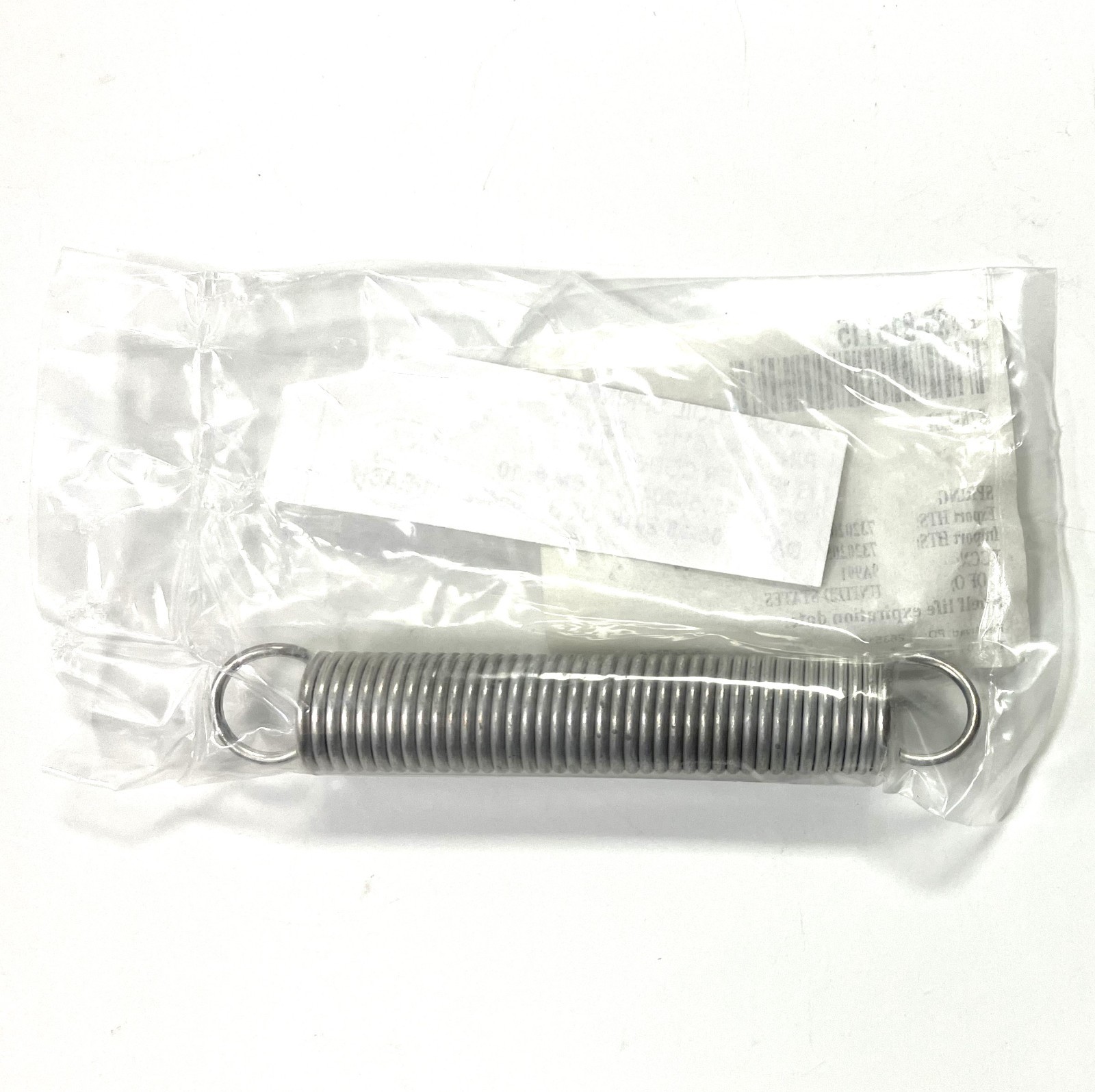

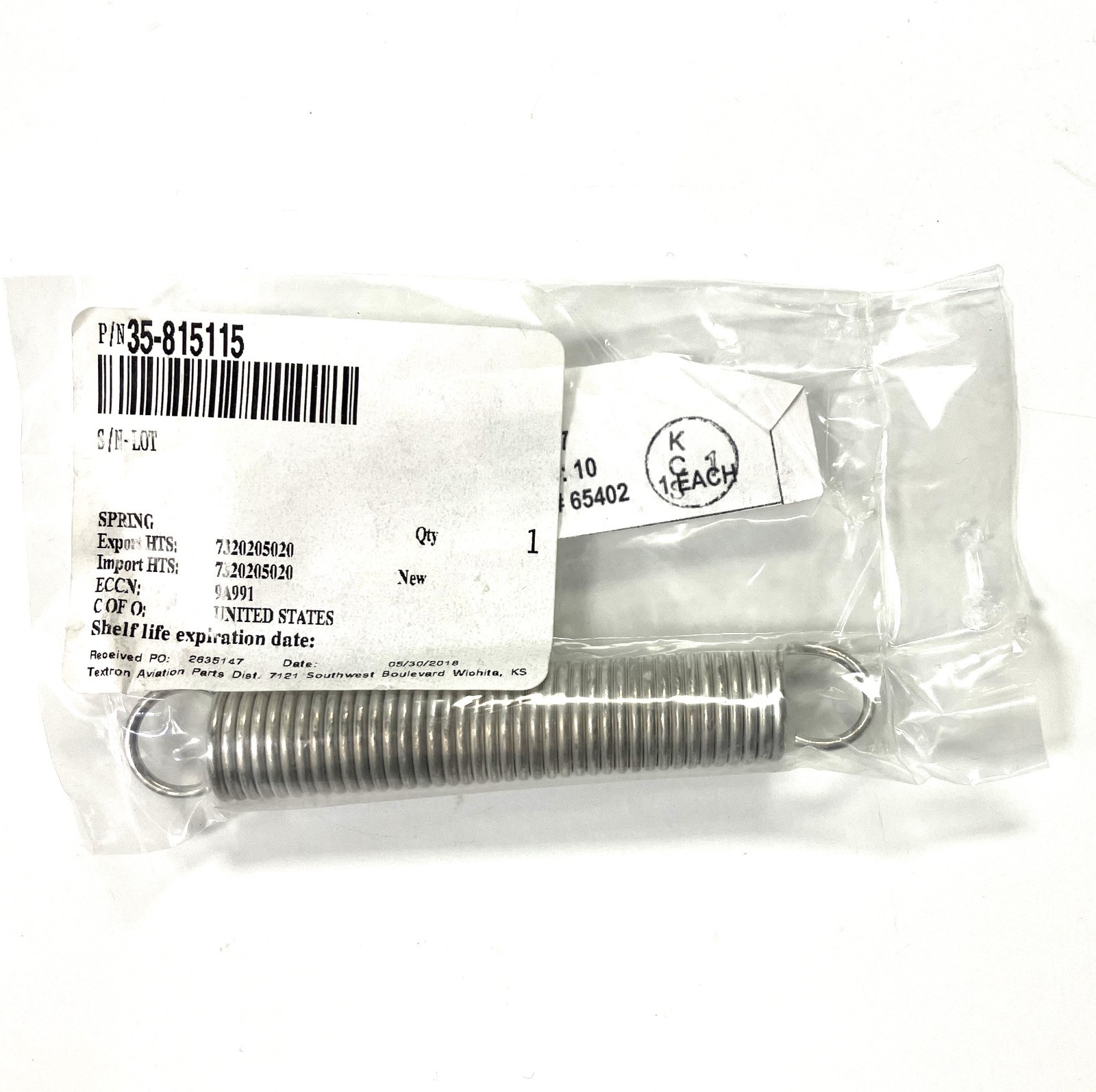

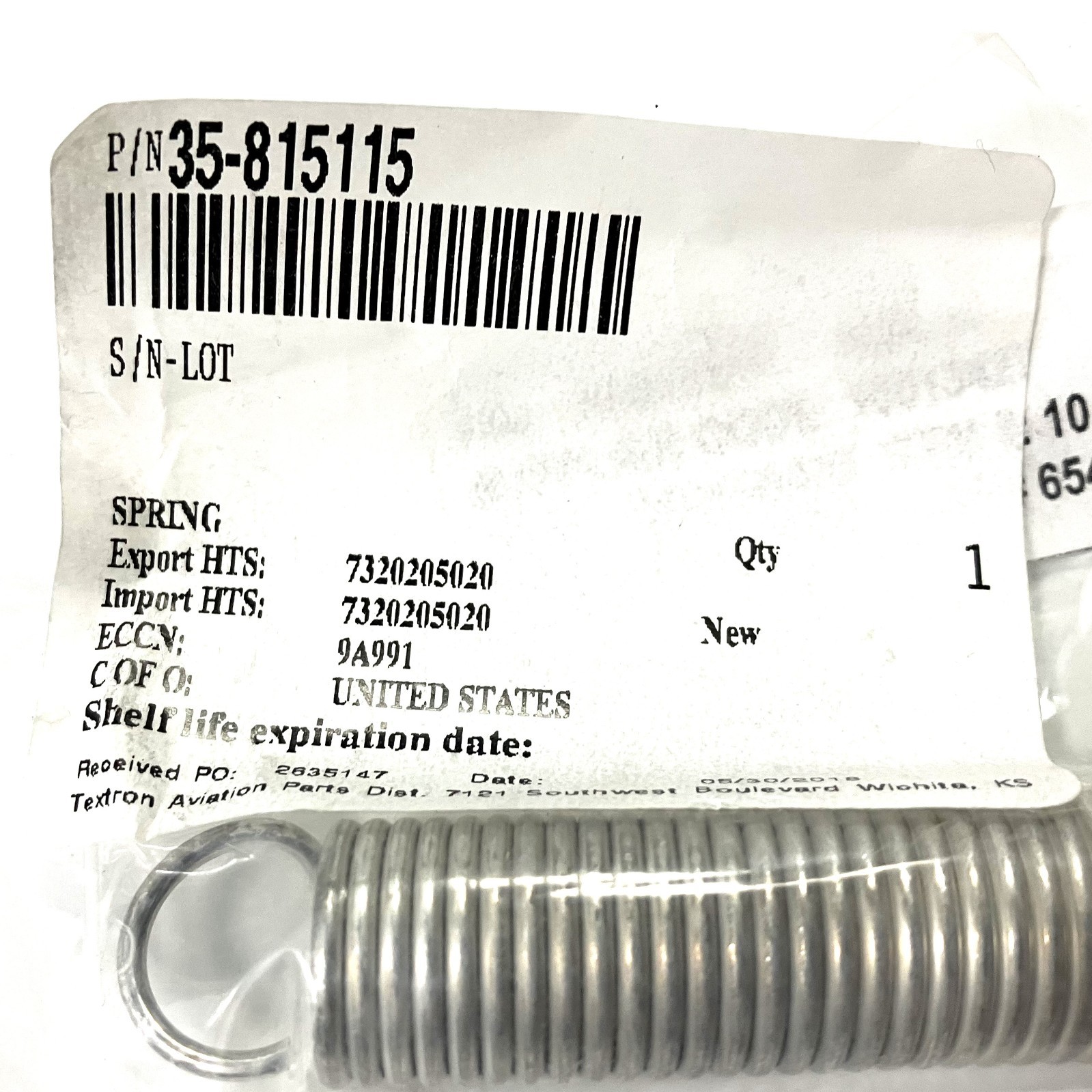

We acquired these springs from an aircraft parts supply business that operated in the Phoenix area for 25 years. The springs have been in storage. We have four of these -- all exactly alike. YOU WILL RECEIVE ONE SPRING. We have never taken the springs out of the package. We are including the last photo, which is a stock photo, showing what the spring looks like when removed. Otherwise, all photos are original. Please examine them and reach out with any questions.

30-Day Warranty

Volume Discounts on Multiple Purchases

Part number 35-815115 is a helical extension spring used as the main landing gear uplock spring on Beechcraft Bonanza and related aircraft .

Function

Landing Gear Operation: It provides the mechanical return force required to lift or release the uplock hook mechanism during gear extension and retraction sequences.

System Security: It ensures positive engagement and disengagement of the main landing gear lock when cycling the gear.

Applicable Aircraft (according to Textron)

Baron Series B55, E55, 58 or G58

Bonanza 36

Bonanza F33, G33, F33A or F33C

List not comprehensive, may be applicable on other models.
