Comant CI-105-3 DME Transponder Antenna S

Description

Comant CI-105-3 DME Transponder Antenna S — $109.

Specs

• Make / Model: Comant CI-105-3 DME Transponder Antenna S
• Condition: Used
• Location: Goleta, CA

Summary

Manufacturer: Comant Industries (Santa Monica, CA U.S.). Part Number: CI-105-3 |Serial: 2287 |Condition: Serviceable. Serial Number: 2287. Part Number: CI 105-3. This antenna was professionally removed from a Cessna 441 Conquest II.

Description

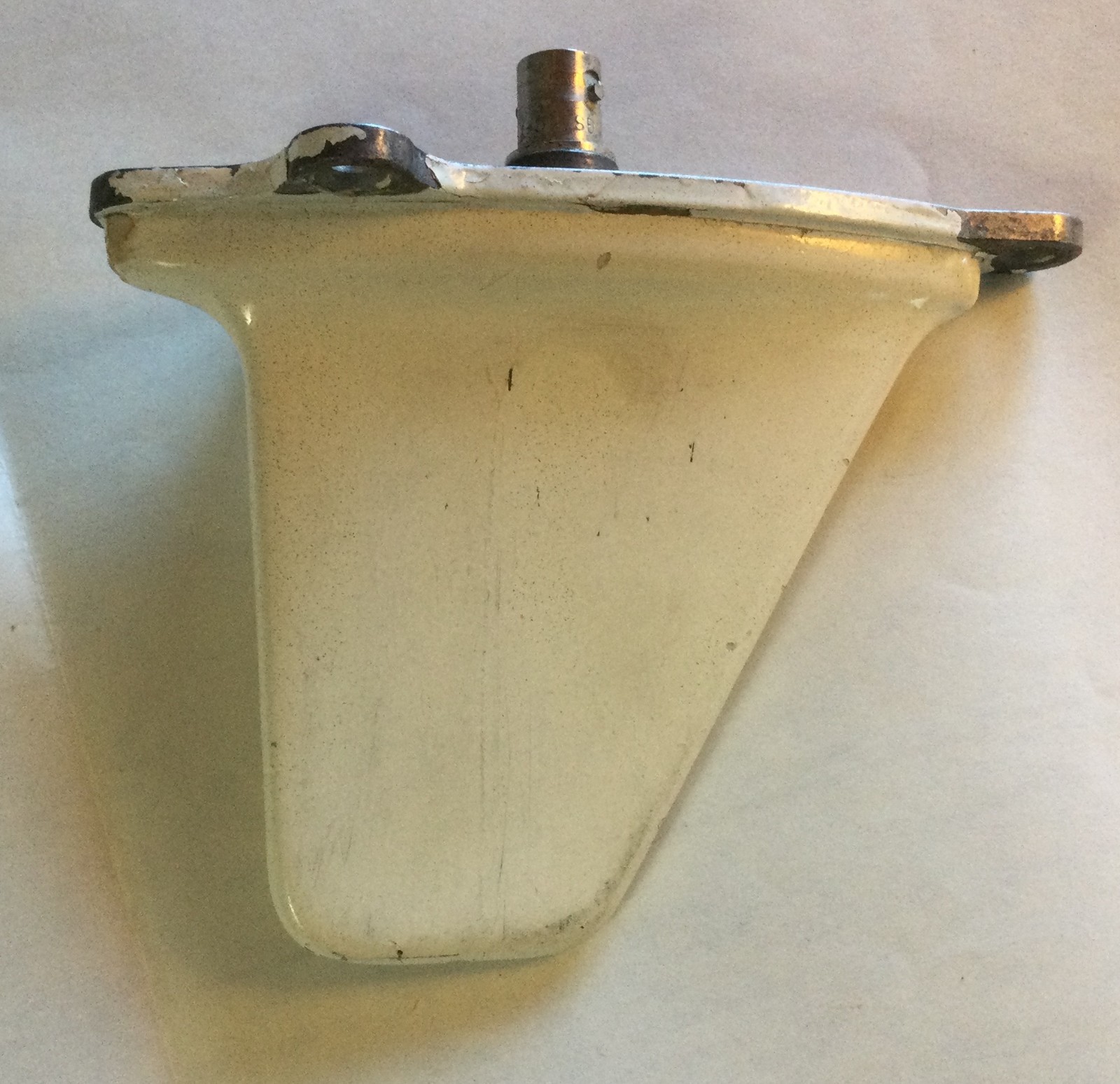

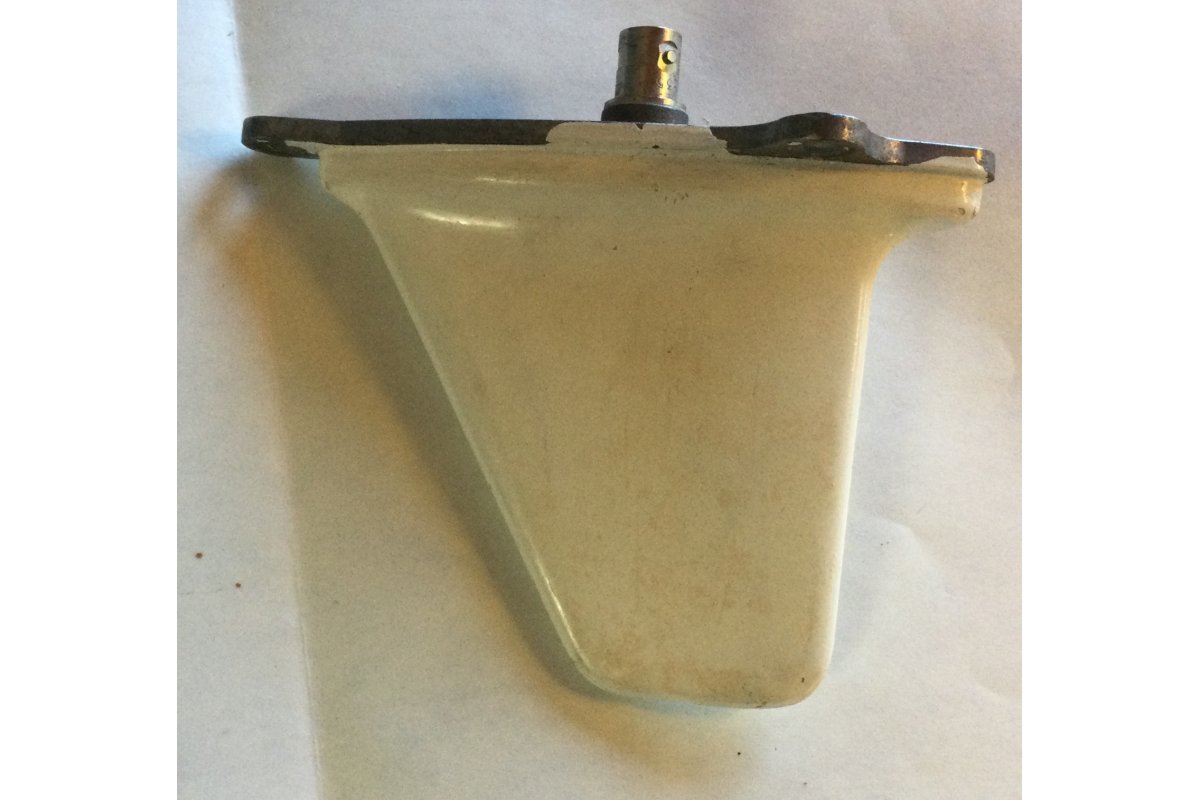

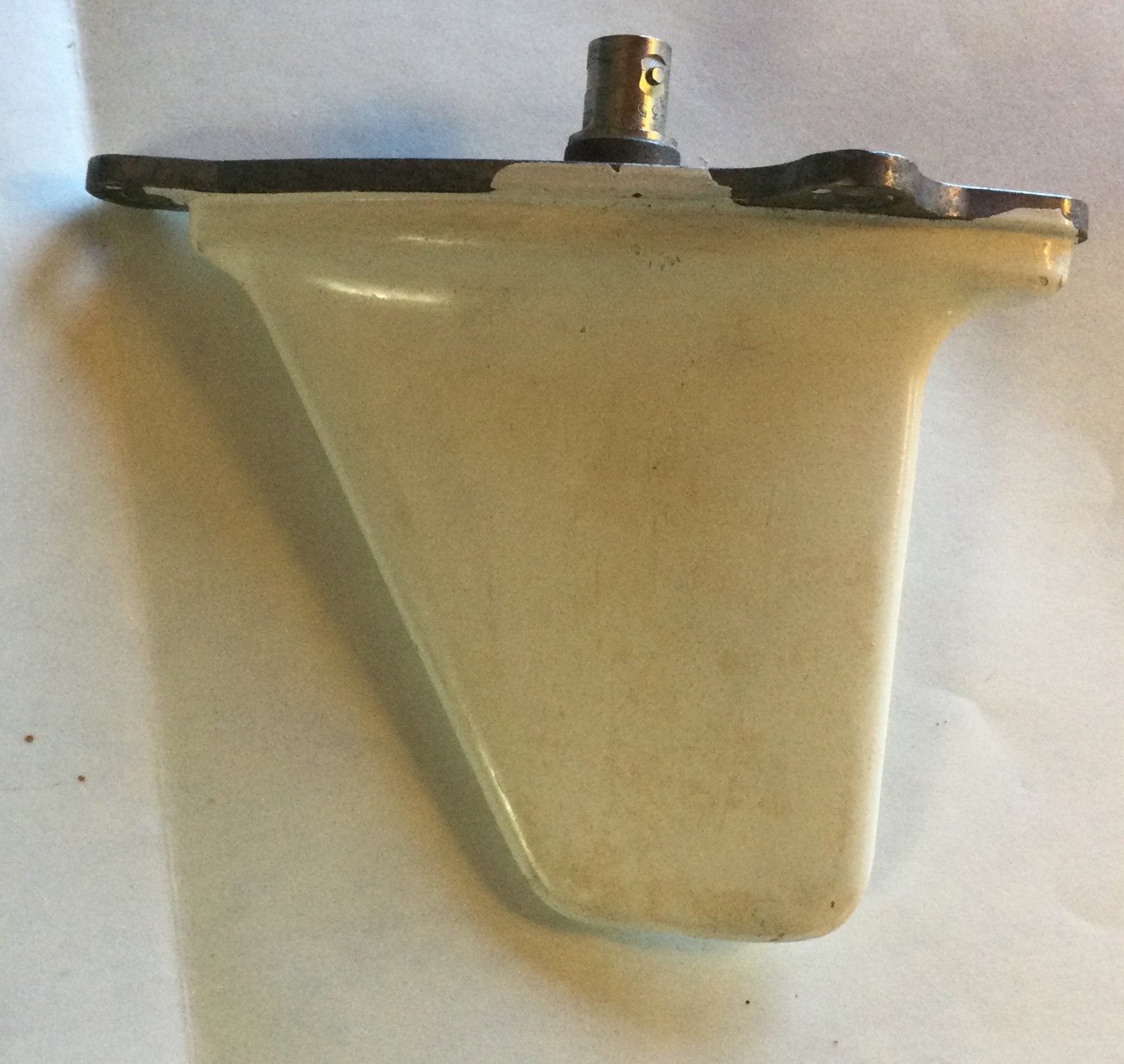

Comant CI-105-3 DME/Transponder Antenna

Part Number: CI-105-3 | Serial: 2287 | Condition: Serviceable

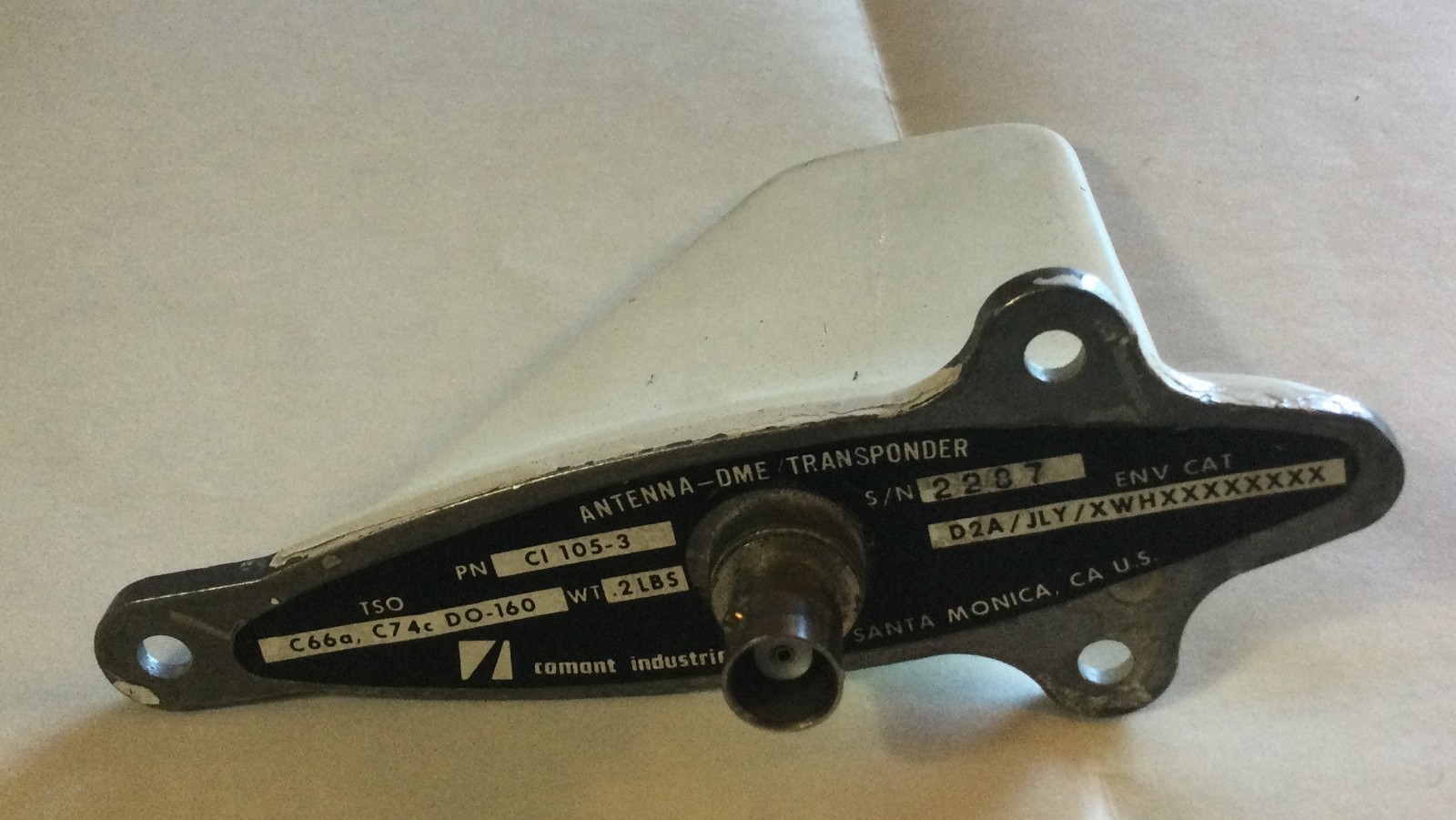

Specifications

Manufacturer: Comant Industries (Santa Monica, CA U.S.)

Part Number: CI 105-3

Serial Number: 2287

Description: ANTENNA-DME/TRANSPONDER

TSO Certification: C66a, C74c DO-160

Weight: 2 LBS

Connector: BNC Female

Mounting: 3-Hole External Flange Mount

Frequency Coverage: 960-1220 MHz

Environmental Category: D2A/JLY/XWHXXXXXXXX

Condition: Removed Serviceable (Date: 6/16/2015)

Compatible Aircraft (Verified)

Primary Application: Turbo-prop and jet aircraft with 3-hole external mounting configuration.

Confirmed Compatible Models:

Cessna 441 Conquest II - Direct fit, verified removal from this aircraft type

Cessna 421 Golden Eagle - Compatible via 3-hole mounting

Cessna 414 Chancellor - Compatible via 3-hole mounting

Cessna 402 Utiliner/Businessliner - Compatible

Beechcraft King Air Series - C90, B200, 200 (3-hole mount variants)

Piper Cheyenne Series - PA-31T, PA-42

Other Twin Turboprops - Any aircraft requiring 3-hole flange DME/Transponder antenna

Note: Also suitable for single and twin engine piston aircraft with 3-hole mounting applications.

The Comant CI-105-3 is a broadband, rugged antenna specifically designed for DME (Distance Measuring Equipment) or Transponder use. This antenna configuration features the popular 3-hole external flange mounting typical on turbo-prop and jet aircraft, distinguishing it from the standard CI-105 2-stud mount version.

Key Features:

Identical electrical characteristics to CI-105

Status:

This antenna was professionally removed from a Cessna 441 Conquest II. It was inspected and tagged as serviceable at time of removal. The unit shows normal wear consistent with external aircraft mounting but remains fully functional per TSO specifications.

Shipping

Ships within 1 business day. Carefully packaged to protect mounting flange and connector. Ships from USA.

Terms

Please verify compatibility with your aircraft maintenance manual before purchase. Returns accepted within 30 days if item is not as described.
