Edo-Aire Mitchell Autopilot Aileron Roll Servo 1C363-1-373R

Description

Edo-Aire Mitchell Autopilot Roll Servo
Part Number: 1C363-1-373R
Serial Number: 20072A

Condition: Serviceable – Removed for Upgrade

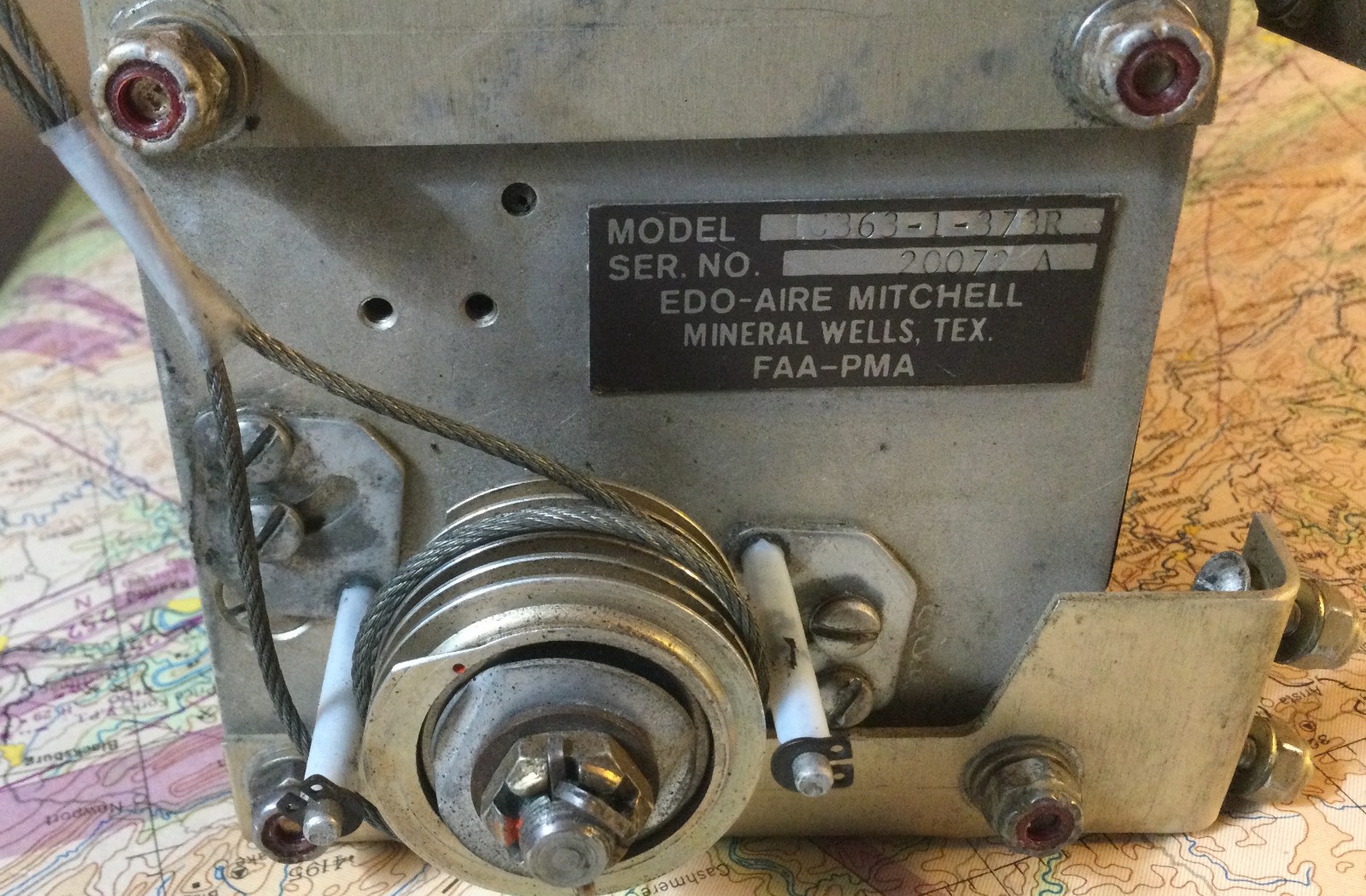

This is a genuine Edo-Aire Mitchell autopilot roll (aileron) servo removed during a Garmin GFC 500 autopilot installation. It includes the Mid-Continent Instruments & Avionics service label dated April 22, 2024, and the original data plate.

Key Specifications

Manufacturer : Edo-Aire Mitchell

Model : 1C363-1-373R

Function : Roll axis servo (drives ailerons via bridle cables and capstan/drum)

Voltage : 14 VDC (typical current draw 1.5–3 A when engaged)

Clutch : Force-limiting clutch set at 20 ± 3 lbs (per STC)

Engagement : Solenoid (fail-safe – engages with autopilot master ON)

Includes : Original data plate and Mid-Continent service tag

Compatibility (Important – Verify Before Buying)

Certified for Grumman American AA-5 series (AA-5 Traveler, AA-5A Cheetah, AA-5B Tiger) under STC SA1486SW (Century II AK374 installation kit).

Mounting location: Lower end of the control yoke support bracket, below the fuel selector valve, on aircraft centerline.

Related Components (for reference):

Century II console/amplifier (1C385)

Artificial horizon (52D66)

Directional gyro (52D54)

Bridle cable (30B200)

Shipping & Warranty

30-day seller warranty (guaranteed as described)

Seller pays return shipping

Notes : Buyer is responsible for verifying compatibility, proper installation, rigging, and certification by a qualified A&P or avionics shop.

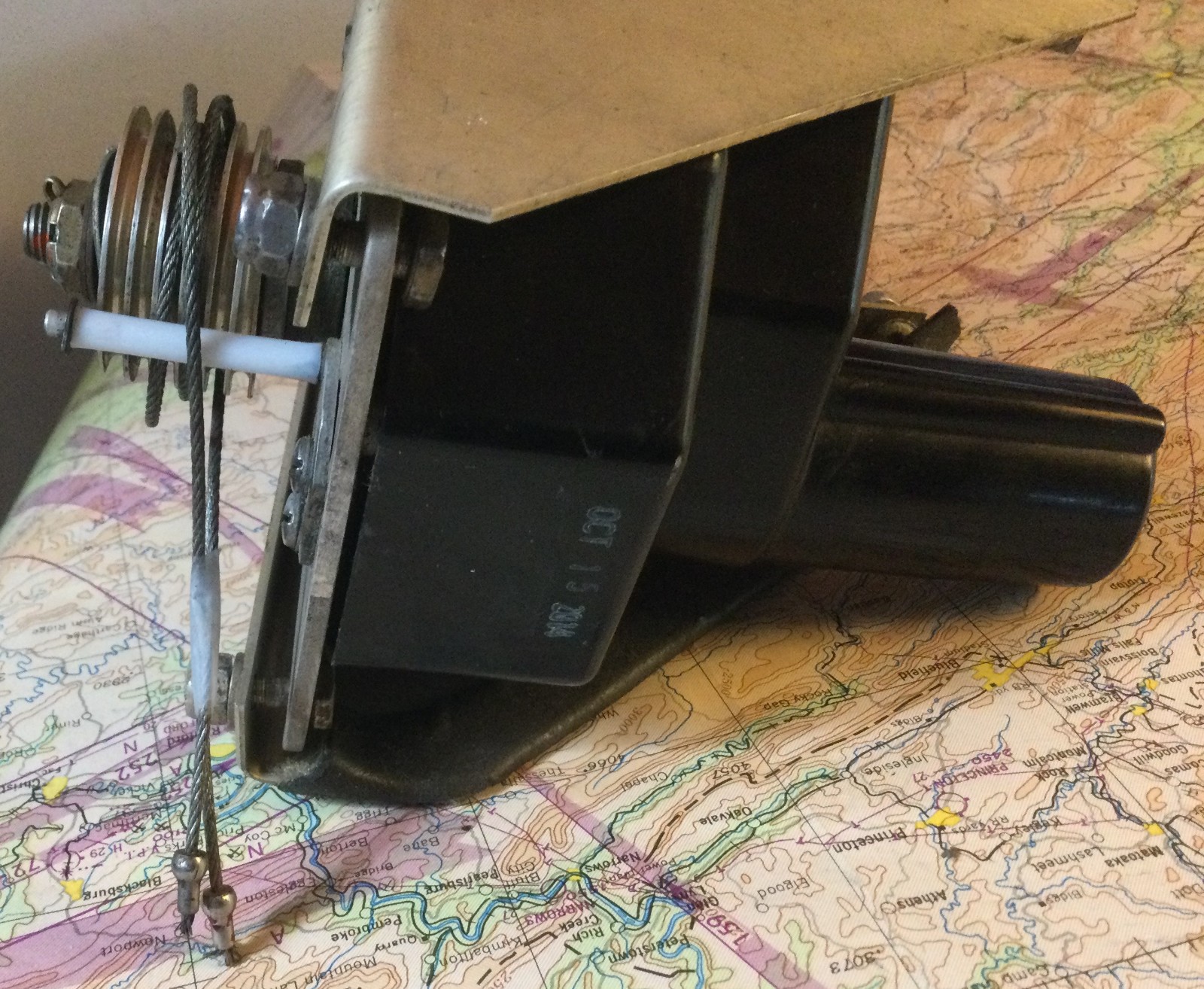

Please review all photos carefully — the exact unit pictured (including tags and data plate) is the one you will receive.
