Pratt & Whitney TWO EA BEARING SLEEVES P
| Make | Pratt & Whitney |
|---|---|
| Model | TWO EA BEARING SLEEVES P |
| Condition | New |
| Location | Bloomingdale, IL , US |
| Date Listed | Aug 3, 2026 |
| Expires | Sep 2, 2026 |
Description
Pratt & Whitney TWO EA BEARING SLEEVES P — $90.
Specs
- Make / Model: Pratt & Whitney TWO EA BEARING SLEEVES P
- Condition: New
- Location: Bloomingdale, IL
Summary
THIS IS FOR 2 EA PRATT & WHITNEY HALF BEARING SLEEVES FOR MAYBE R-1830 ?. III PRECIOUS MATERIAL SILVER. ANTIROTATION/LUBRICATION TYPE AND QUANTITY 4 HOLE. CORNER SHAPE SQUARE ALL CORNERS.
Description

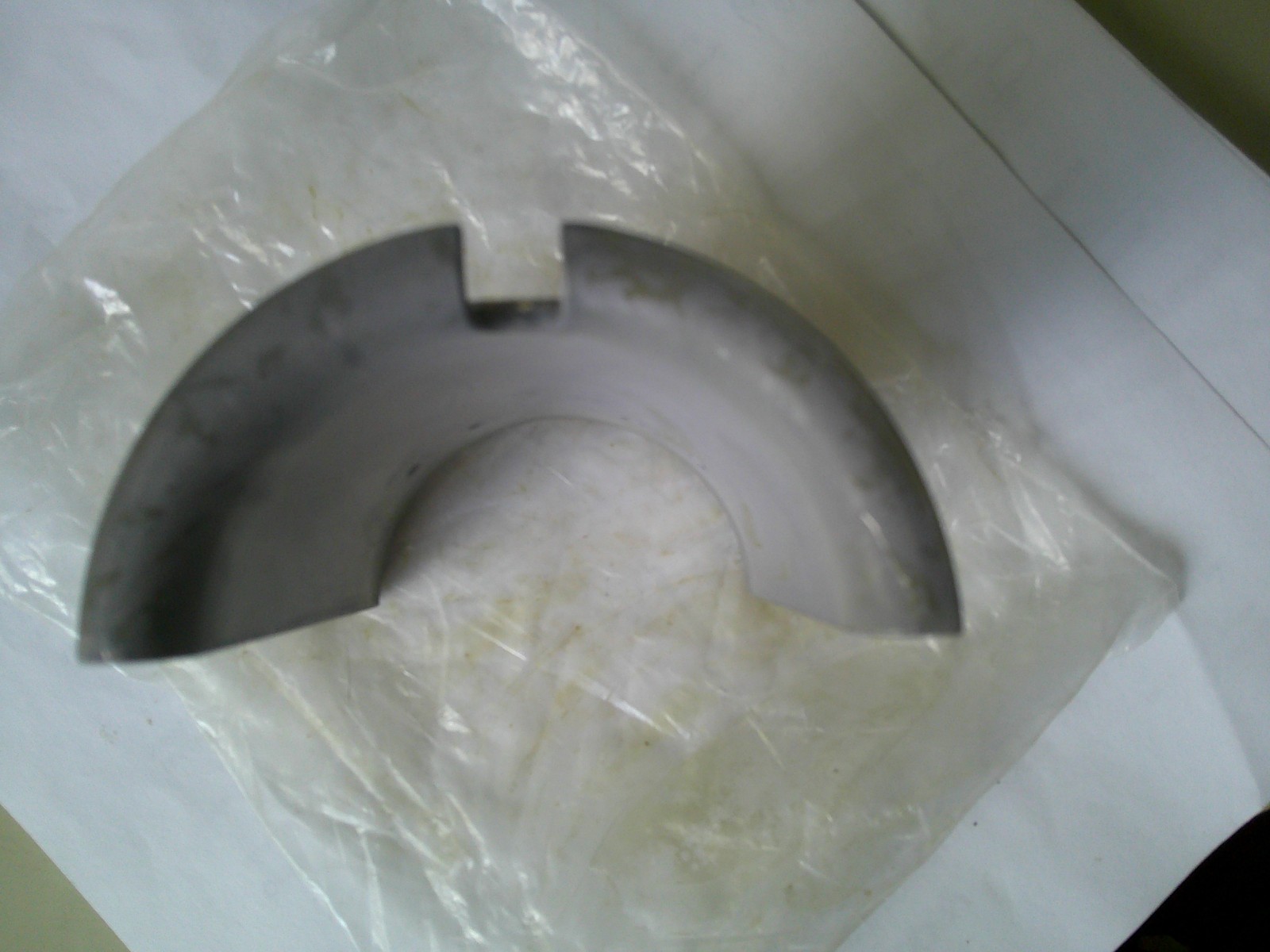

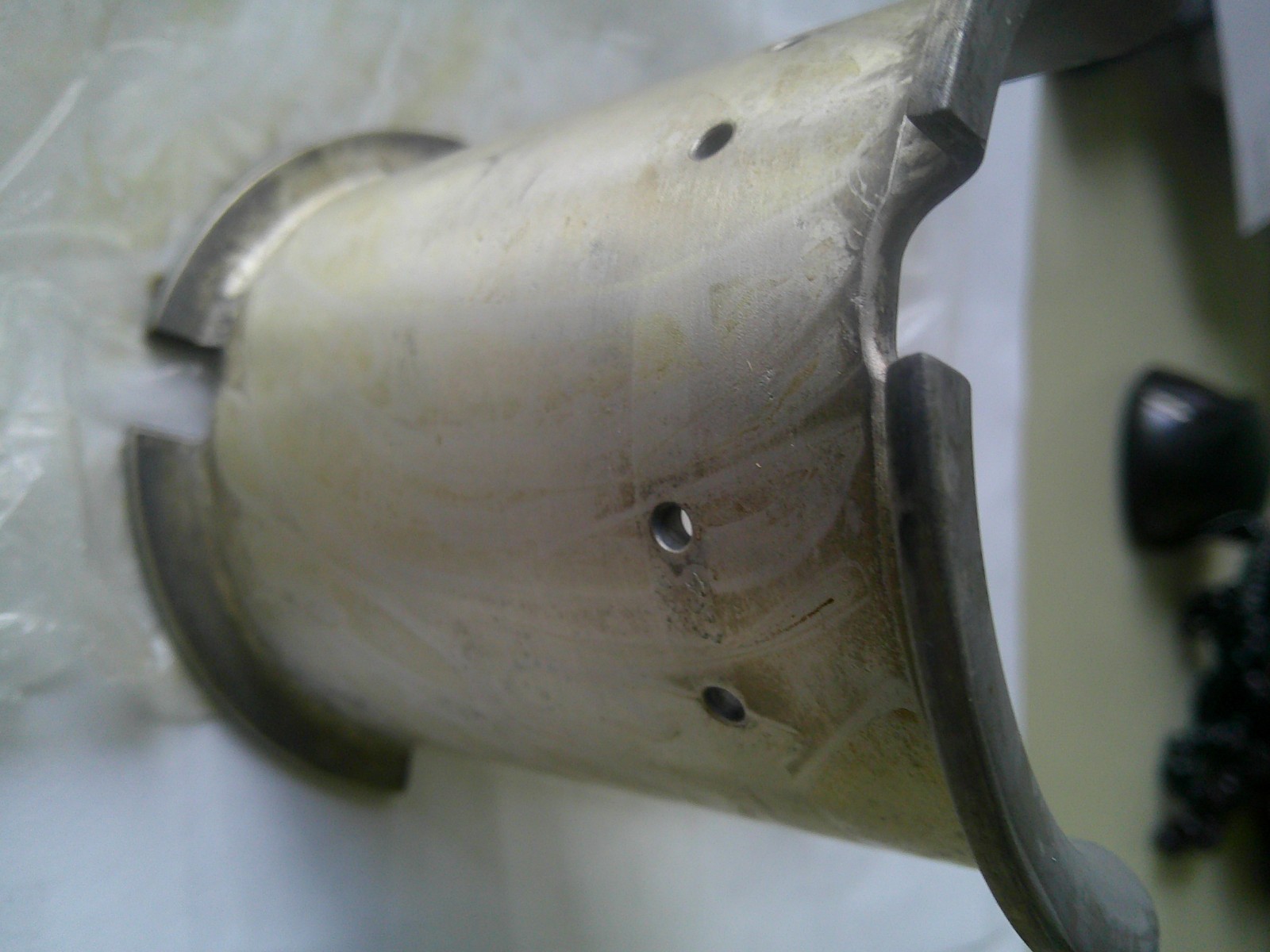

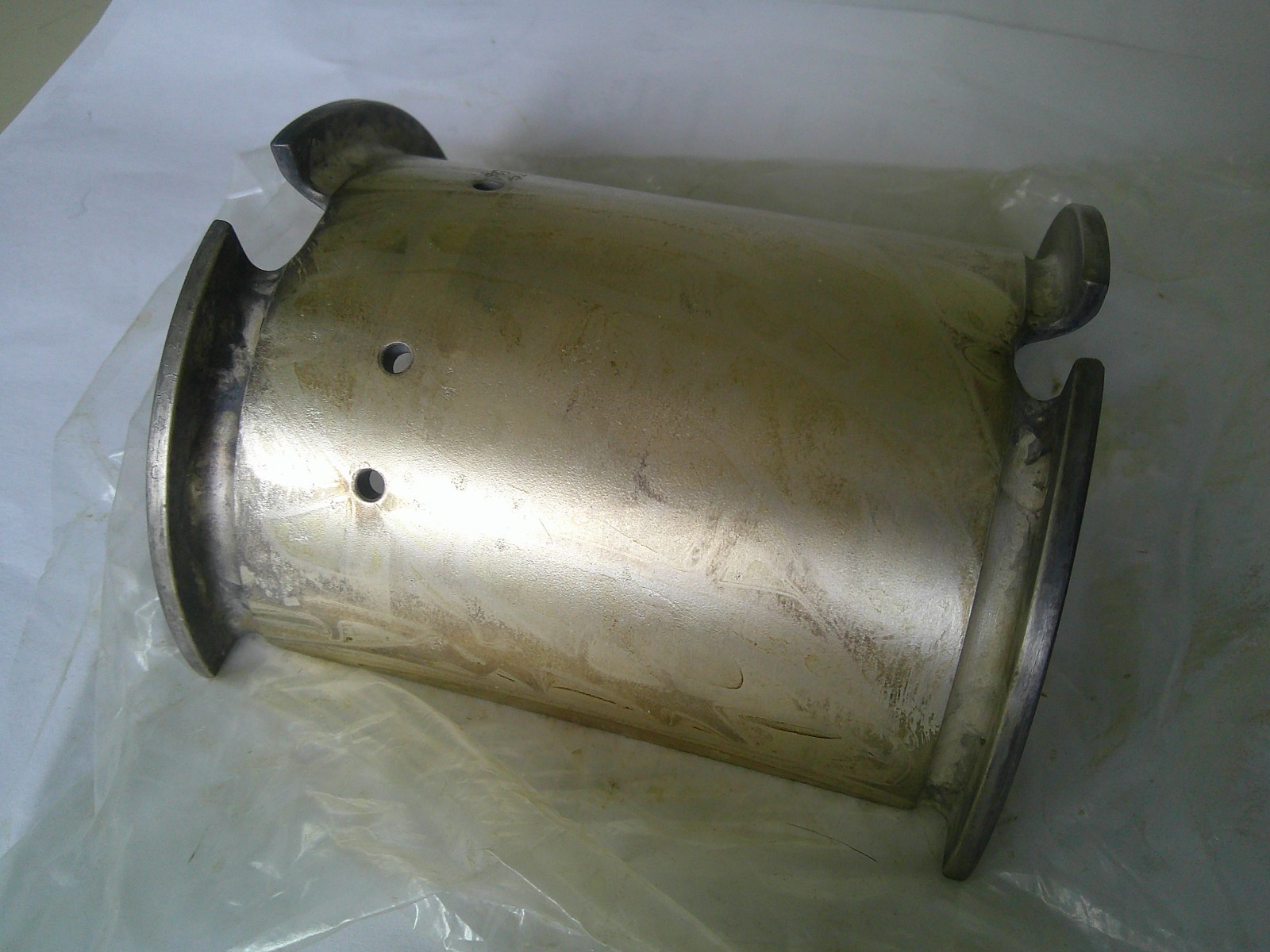

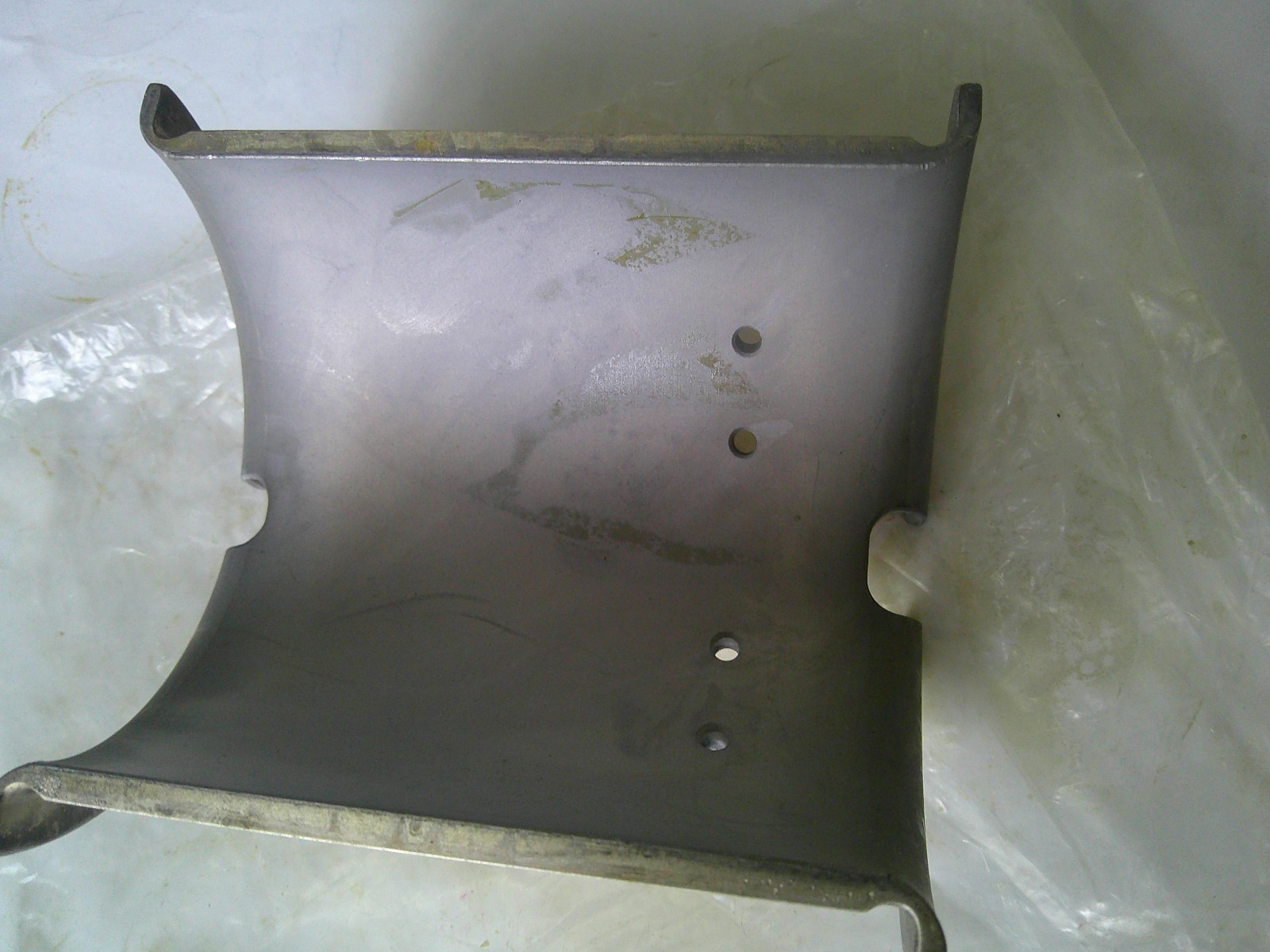

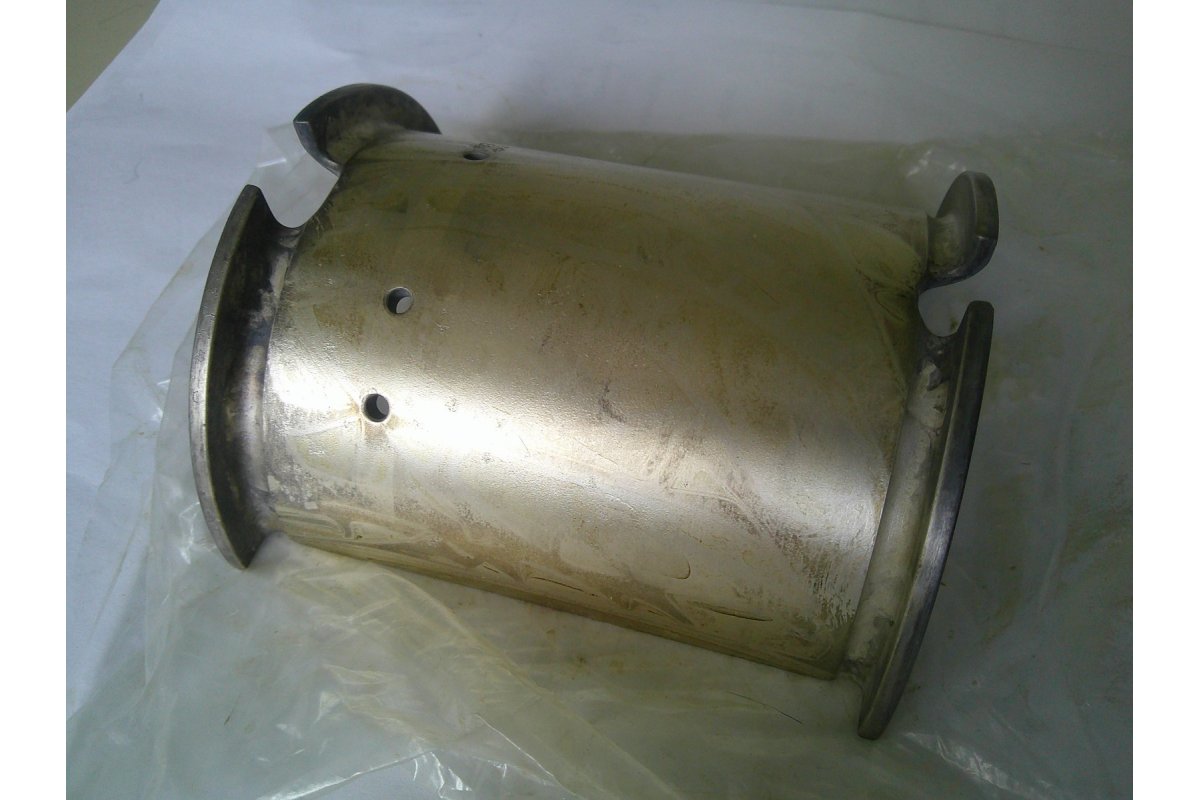

THIS IS FOR 2 EA PRATT & WHITNEY HALF BEARING SLEEVES FOR MAYBE R-1830 ?
P/N 195860M6
NSN 3120-00-633-1460
CONDITION: NEW SURPLUS
SOLD AS-IS, NO RETURNS
WE COMBINE SHIPPING WHEN EVER POSSIBLE.
MORE DETAILS:
MATERIAL DOCUMENT AND CLASSIFICATION AMS 6280 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6281 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6355 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6530 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
STYLE DESIGNATOR 22D HALF SLEEVE
OVERALL LENGTH 3.7288 INCHES MINIMUM AND 3.7320 INCHES MAXIMUM
BODY OUTSIDE DIAMETER 2.9065 INCHES NOMINAL
BODY INSIDE DIAMETER 2.7649 INCHES NOMINAL
FLANGE OUTSIDE DIAMETER 3.3960 INCHES MINIMUM AND 3.4160 INCHES MAXIMUM
FLANGE WIDTH 0.1130 INCHES MINIMUM AND 0.1160 INCHES MAXIMUM
CORNER SHAPE SQUARE ALL CORNERS
ANTIROTATION/LUBRICATION TYPE AND QUANTITY 4 HOLE
HOLE DIAMETER 0.1200 INCHES MINIMUM AND 0.1300 INCHES MAXIMUM FIRST
III PRECIOUS MATERIAL SILVER
