Preece Parking Brake Assembly A-10, T-37,

Description

Preece Parking Brake Assembly A-10, T-37, — $125.

Specs

• Make / Model: Preece Parking Brake Assembly A-10, T-37,
• Condition: New
• Location: Oak Park, MI

Summary

BRAKE ASSEMBLY. GRUMMAN A-10 AIRCRAFT. 5CONSISTS OF 1 FOOT LEVER W/RACHET AND RELEASE,1 BRAKE DRUM,1 MTG PLATE,1 HOUSING AND MTG HARDWARE.375 IN. DRUM SIZE,LEVER ACTUATED,9.250 IN. DIA O/A,5.500 IN.H O/A,FOUR 0.406 IN.

Description

Parking Brake
Assembly A-10, T-37, T-38 AIRCRAFT 52003-2 / 2530-00-856-2946 [A6S3

A-10, T-37, T-38

You are bidding on a Parking Brake Assembly A-10,
T-37, T-38 AIRCRAFT 52003-2 / 2530-00-856-2946.

NSN
INFORMATION
2530-00-856-2946

INC: 77777

ITEM
NAME: BRAKE ASSEMBLY

FIIG: A23900

CRIT

X

TIIC

4

RPDMRC

1

ADP

HMIC

P

ESDEMI

PMI

U

MCRL
INFORMATION 2530-00-856-2946

Part
No.

RNCC

RNVC

RNFC

SADC

DAC

CAGE

Name

0RA-52003-2

5

2

5

3NNX8

BRIGHTON CRO

0RA-52003-2

5

9

4

4

52993

AR BEE CORP

52003

5

9

4

6

83445

PREECE ACQUI

52003-2

3

2

4

2

83445

PREECE ACQUI

ML-C
INFORMATION 2530-00-856-2946

SA

SOS

MCD

UI

QUP

AAC

SLC

RC

CIIC

Price

DS

SMS

EA

1

J

0

N

U

374.88

DF

SMS

SF9---V

EA

1

J

0

N

U

374.88

Procurement
History Information 2530-00-856-2946

Date

Contract
No.

SOS

Qty

Price

UI

CAGE

Vendor

1998/07

SP070098ABJ84

S9C

8

312.40

EA

8S706

GIGA, INC.

1998/02

SP070098MA877

S9C

11

302.39

EA

0GKF8

NINETECH INT

1998/01

SP070098AAX23

S9C

8

312.50

EA

50309

JOHN REINER

Technical
Characteristics ( ILs ) 2530-00-856-2946

MRC

Requirement

Reply

TEXT

GENERAL CHARACTERISTICS ITEM DESCRIPTION

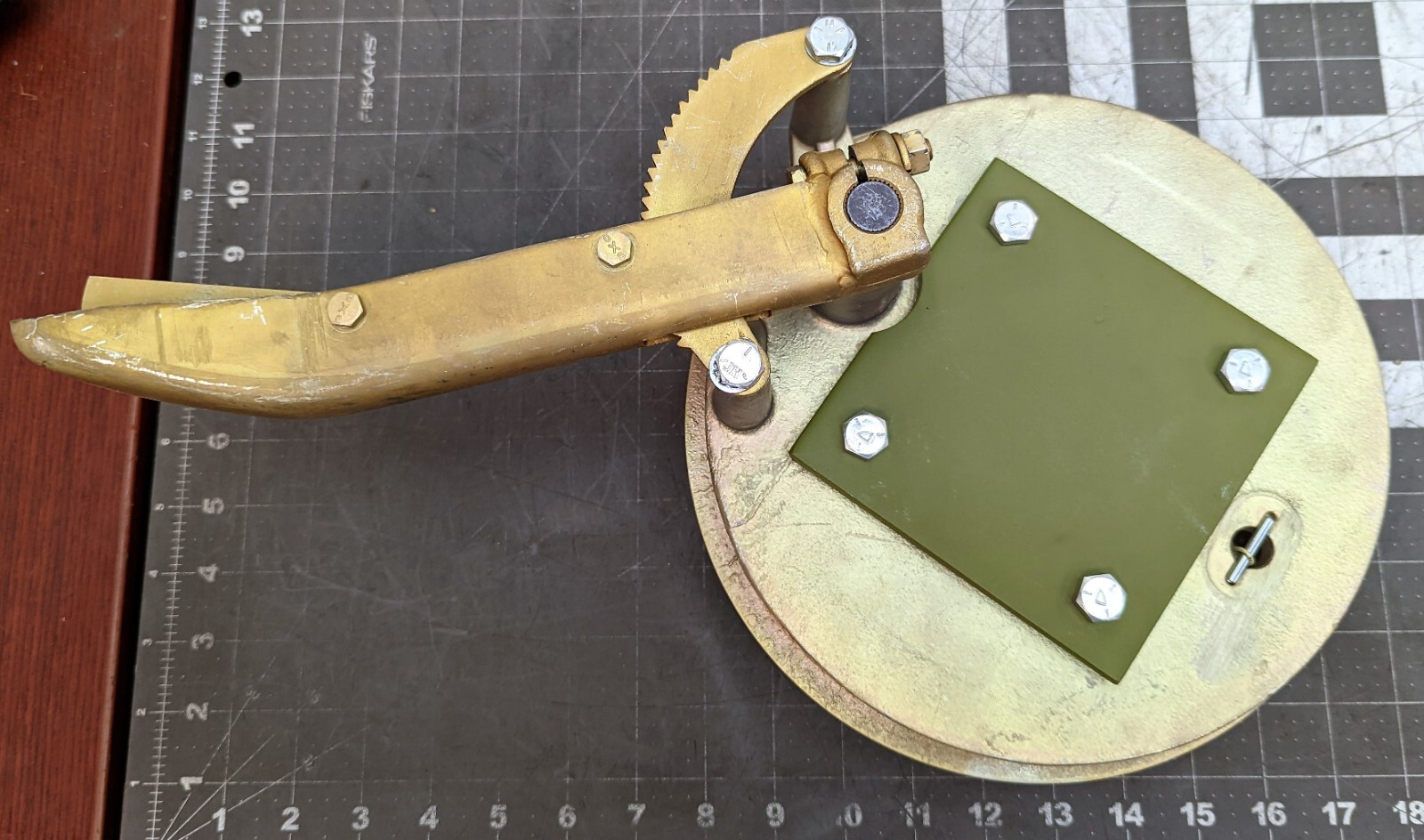

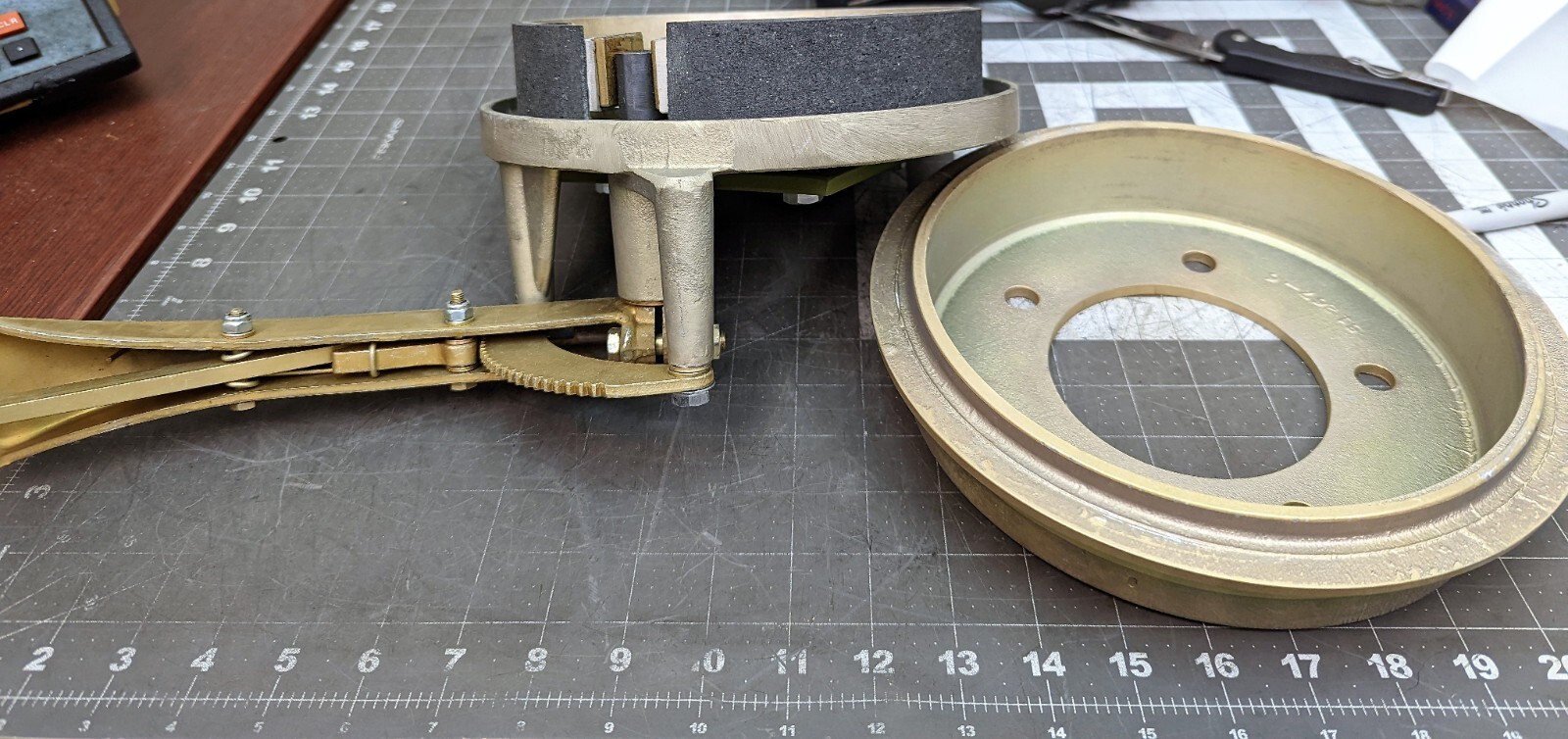

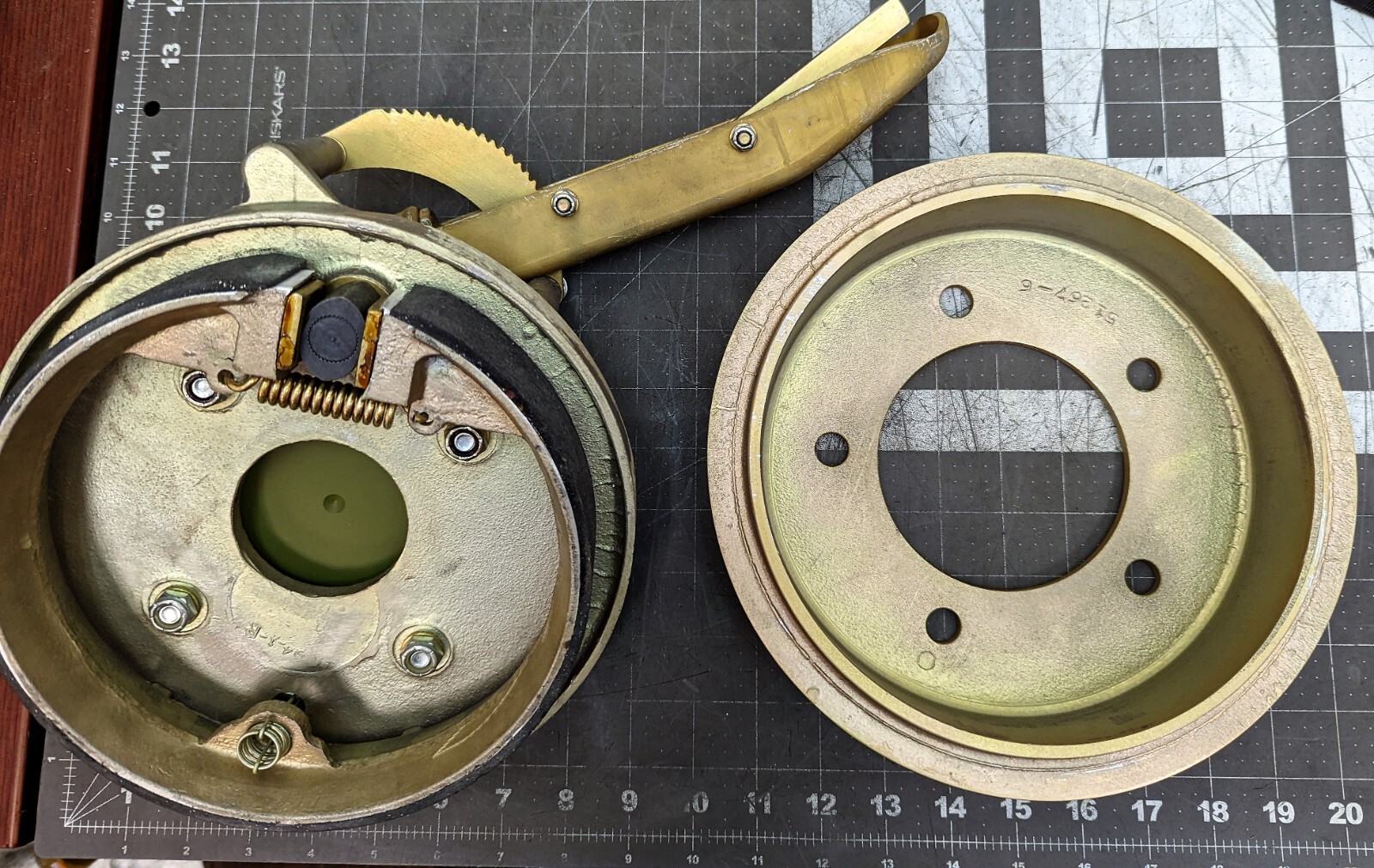

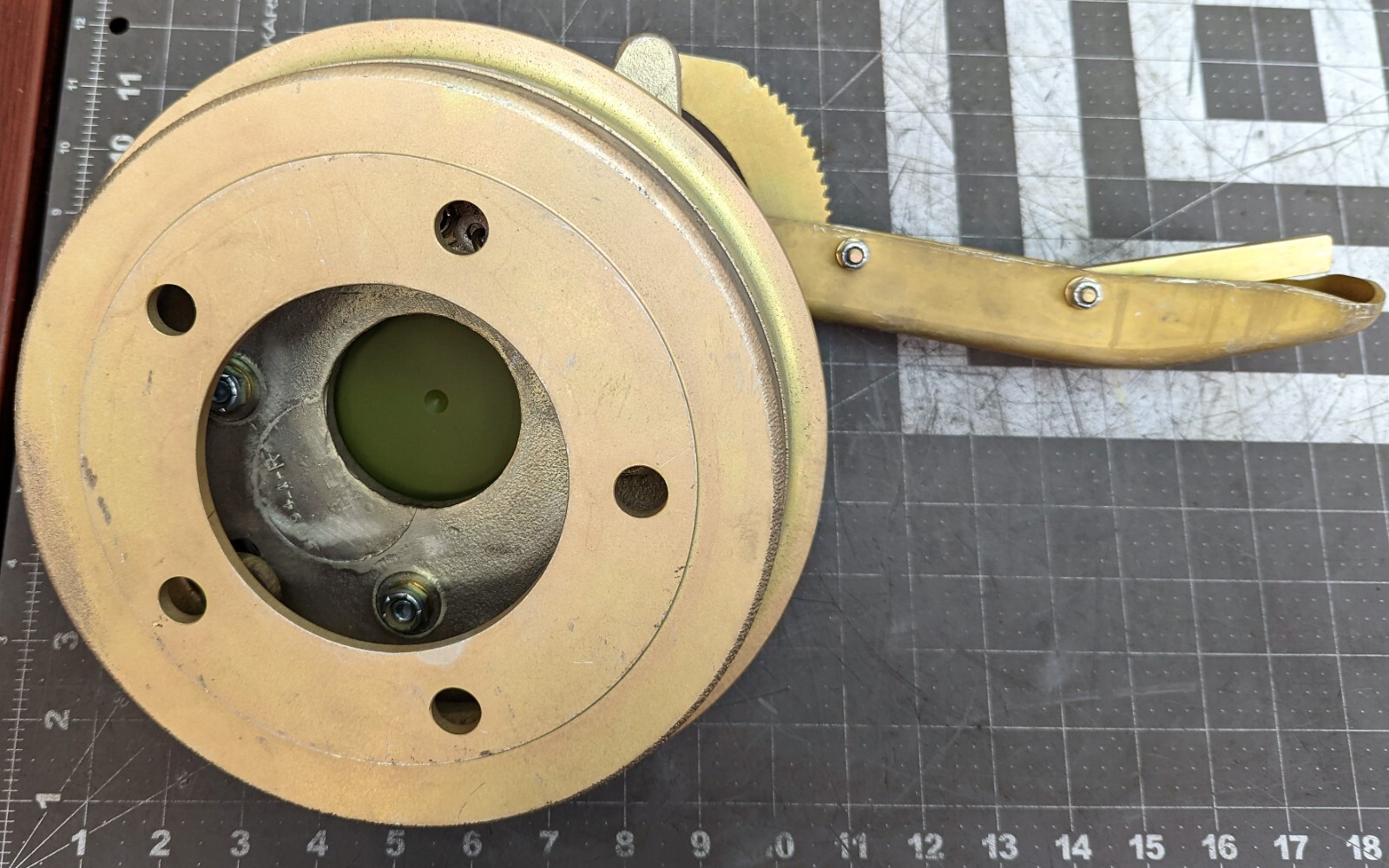

5CONSISTS OF 1 FOOT LEVER W/RACHET AND RELEASE,1 BRAKE
DRUM,1 MTG PLATE,1 HOUSING AND MTG HARDWARE,.375 IN. DRUM SIZE,LEVER
ACTUATED,9.250 IN. DIA O/A,5.500 IN.H O/A,FOUR 0.406 IN. DIA MTG
HOLES,EQUALLY SPACED 3.500 IN. C TO C OCATED IN MTG PLATE

AGAV

END ITEM IDENTIFICATION

GRUMMAN A-10 AIRCRAFT

Payment:

We accept most forms of payment including:
Credit Cards, Pay-Pal, personal, company and cashier’s checks, pay on pick up.
All funds must clear our bank before delivery.

Return Policy:

Within 30 days after receiving this item and
if you believe that we mis- represented it, please email us to set up a return
shipment. All freight and handling charges are the responsibilities of the
buyer, in both directions. The item must be returned in the same condition that
it was shipped. Thank You

SHIPPING:

This item has a combined shipping weight of 15 pounds (15"x15"x10") and will ship USPS or FedEx. Check with us
for shipping options and rates. We combine shipping on multiple orders.
