Unbranded (25) HL86PB-5 Stainless Cad II

Description

Unbranded (25) HL86PB-5 Stainless Cad II — $48.

Specs

• Make / Model: Unbranded (25) HL86PB-5 Stainless Cad II
• Condition: New
• Location: Dallas, TX

Summary

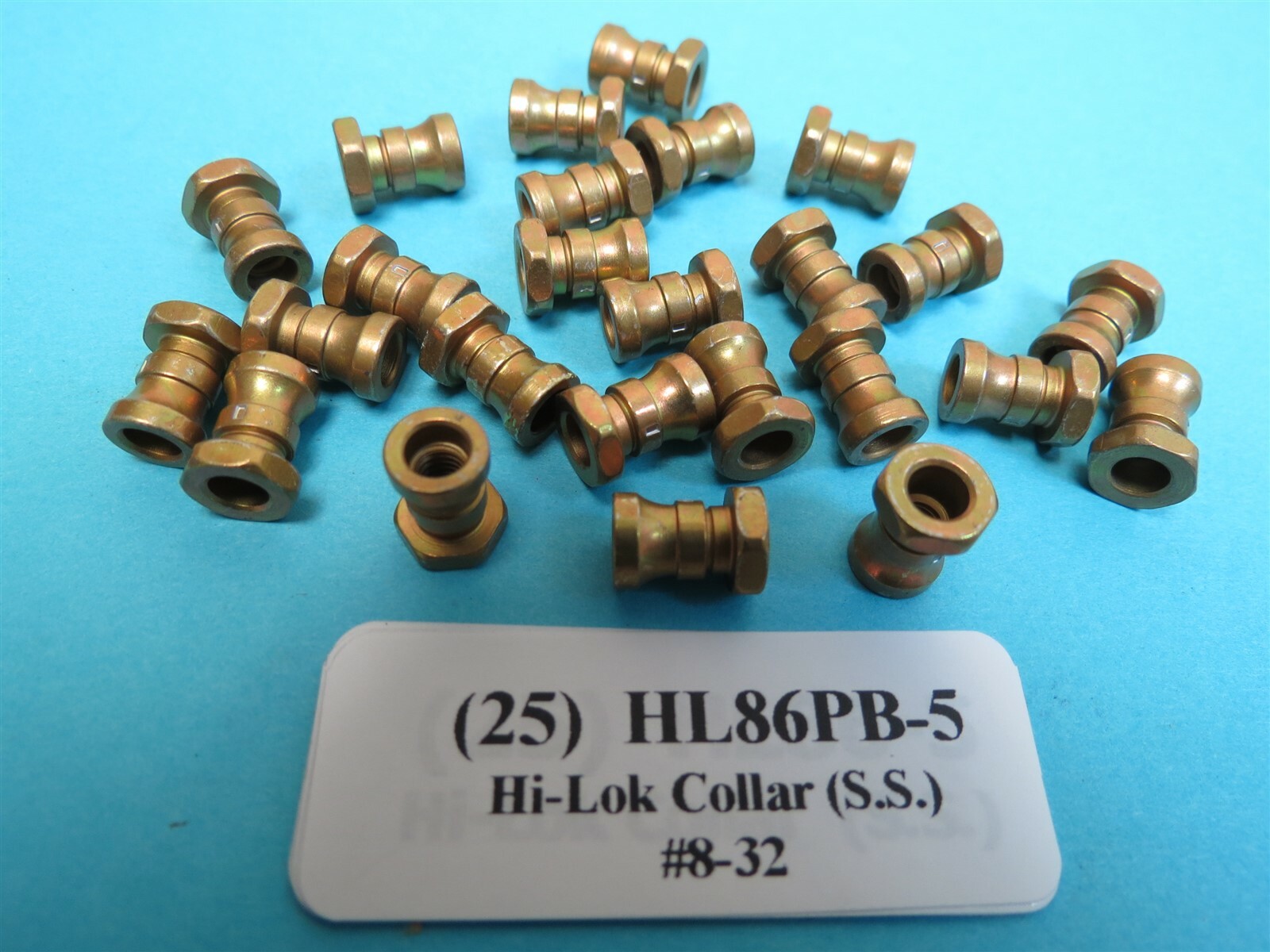

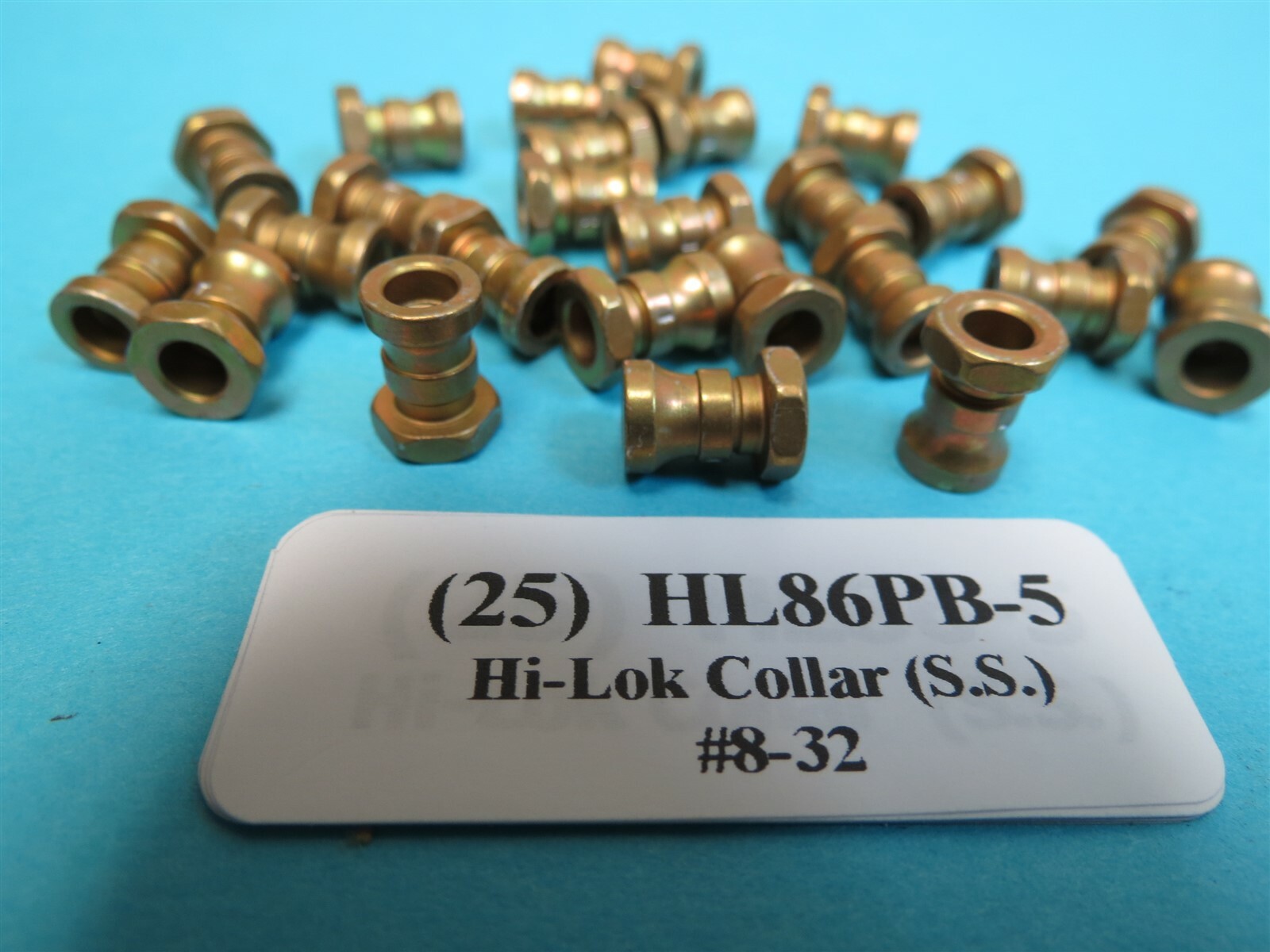

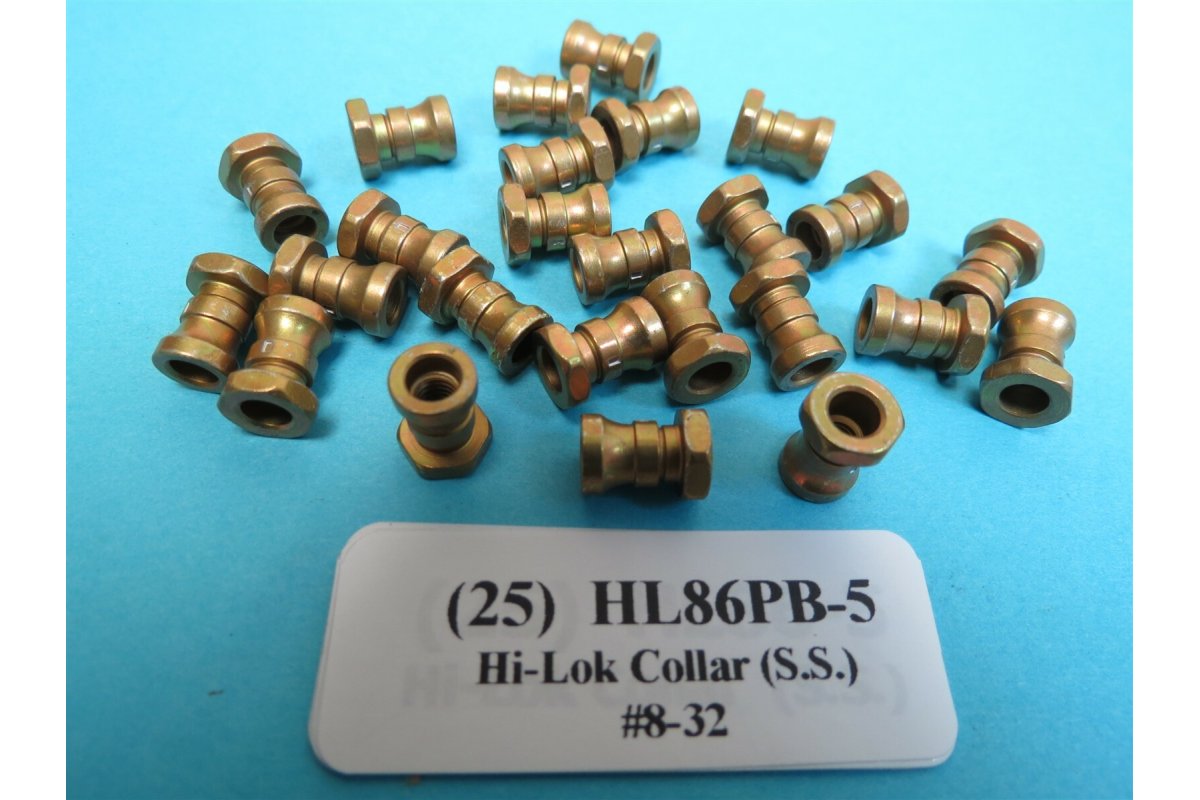

(25) New CAD II plated HL86PB-5 Self-Locking Stainless Steel Collars for #8-32 Threaded HI-Lok Pins. These types of Collars are used extensively throughout the Aerospace and Aircraft Industry. They are self-locking using an elliptical internal thread shape.

Description

(25) New CAD II plated HL86PB-5 Self-Locking Stainless Steel Collars for #8-32 Threaded HI-Lok Pins. These types of Collars are used extensively throughout the Aerospace and Aircraft Industry. They are self-locking using an elliptical internal thread shape. The wrenching element breaks away at the designed preload. Pre-load consistency among fasteners in a joint has been a long-standing need in the industry.

Technical Characteristics

THREAD CLASS

3B

THREAD DIRECTION

RIGHT-HAND

COLLAR OUTSIDE DIAMETER

0.283 INCHES MIN AND 0.287 MAX

COLLAR OVERALL HEIGHT

0.427 INCHES MIN AND 0.447 MAX

COLLAR INSIDE DIAMETER

0.166 INCHES MIN AND 0.173 MAX

THREAD QUANTITY PER INCH

32

NOMINAL THREAD SIZE

0.164 INCHES

COLLAR STYLE

THREADED (BREAK OFF) TYPE

MATERIAL

STEEL COMP 303SE OVERALL

SURFACE TREATMENT

CADMIUM II OVERALL

DESIGN CONTROL REFERENCE

HL86PB-5

THREAD SERIES DESIGNATOR

UNJC

Even though it is in new condition, buyer is responsible to make sure that this part will work for their applications as there is no warranty or guarantee expressed or implied.
