Whelen Engineering Co., Inc. A490 T-14

Description

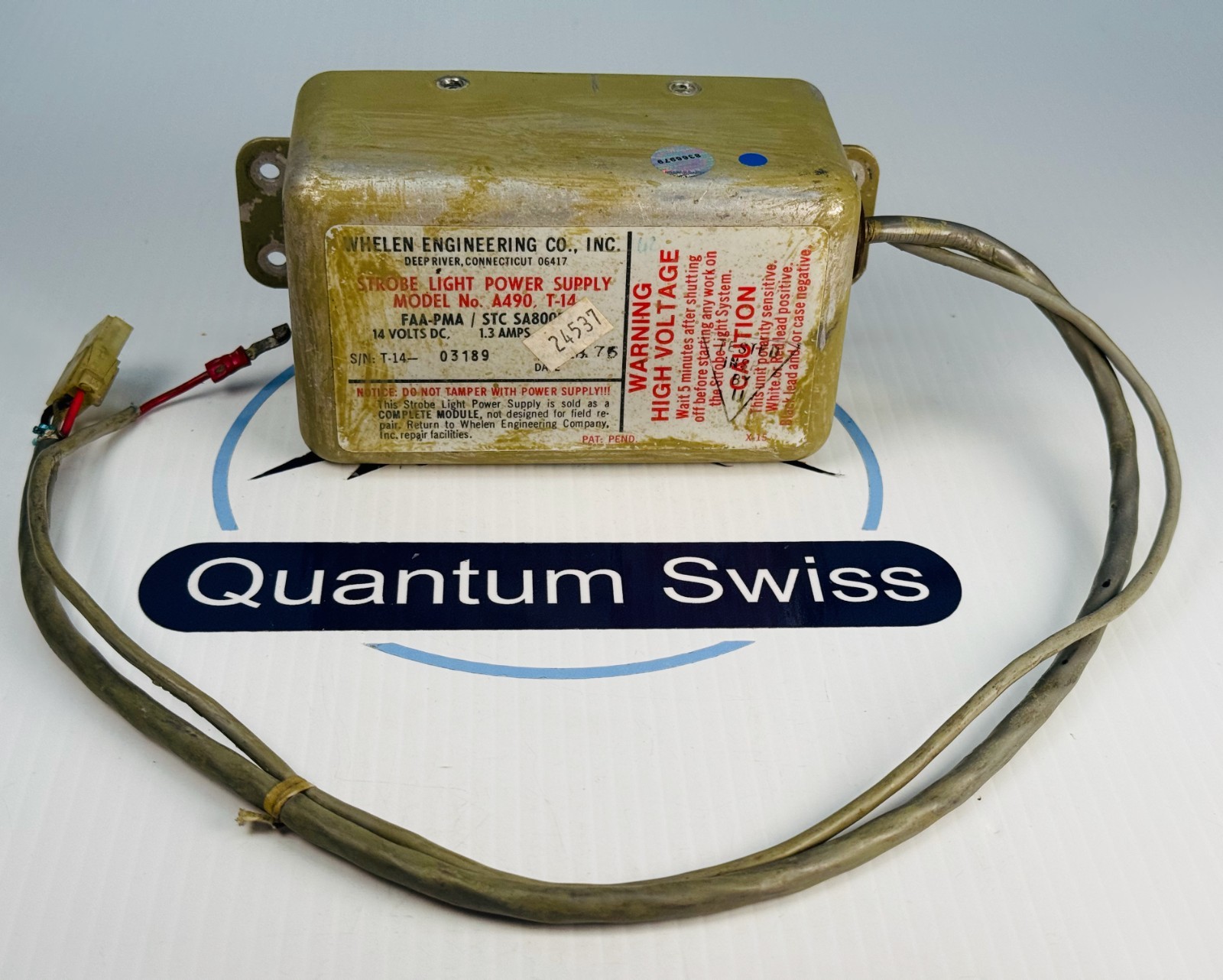

Whelen A490 T-14 Strobe Light Power Supply 14V Aircraft

This listing is for one legacy Whelen Engineering A490 T-14 aircraft strobe-light power supply rated for a 14-volt DC electrical system .

The original identification label lists the unit as a complete strobe-light power-supply module with an input rating of 14 VDC at 1.3 amps . It carries visible FAA-PMA / STC SA800-series markings , although the complete STC suffix is partially obscured by age and label wear.

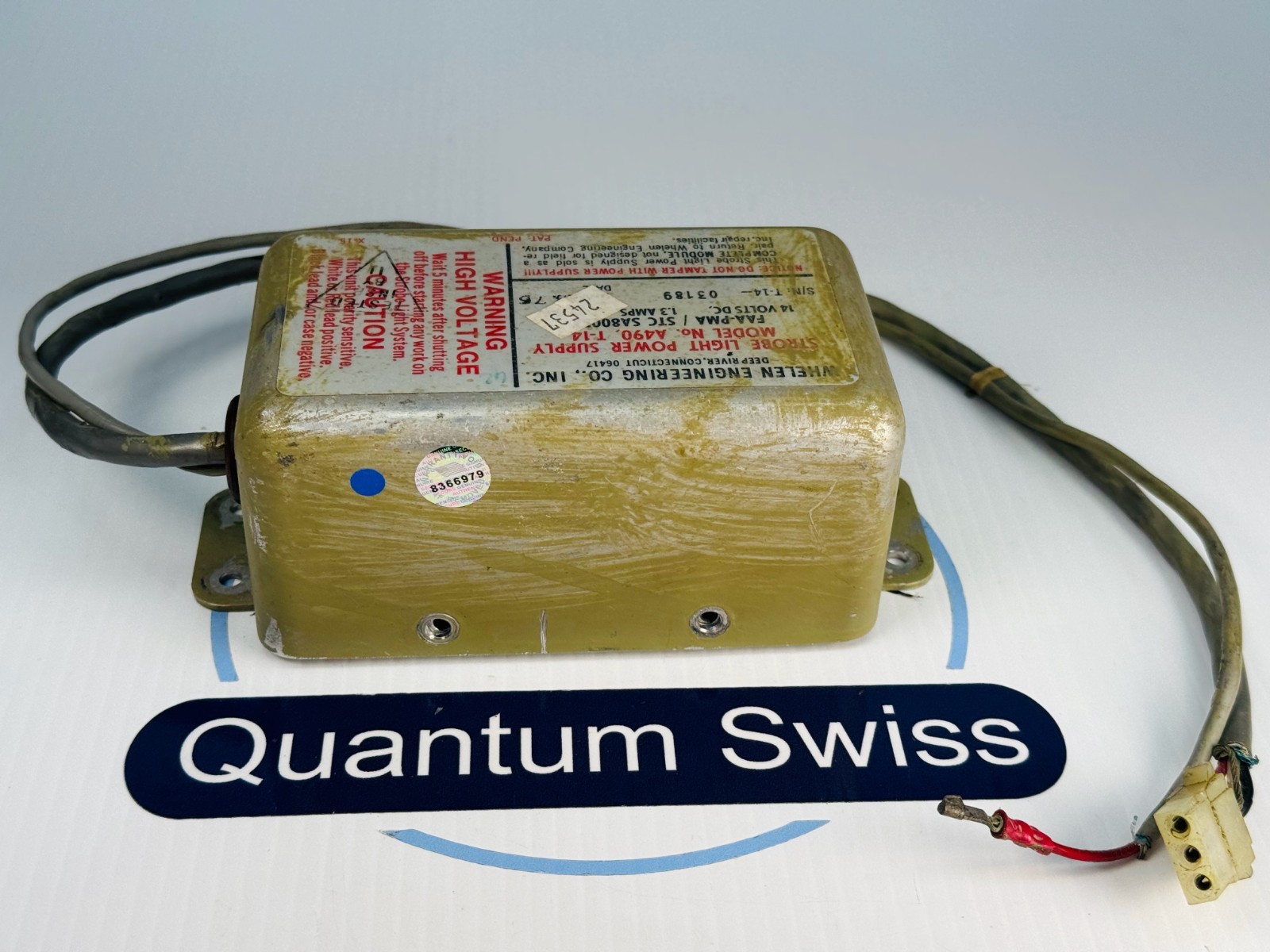

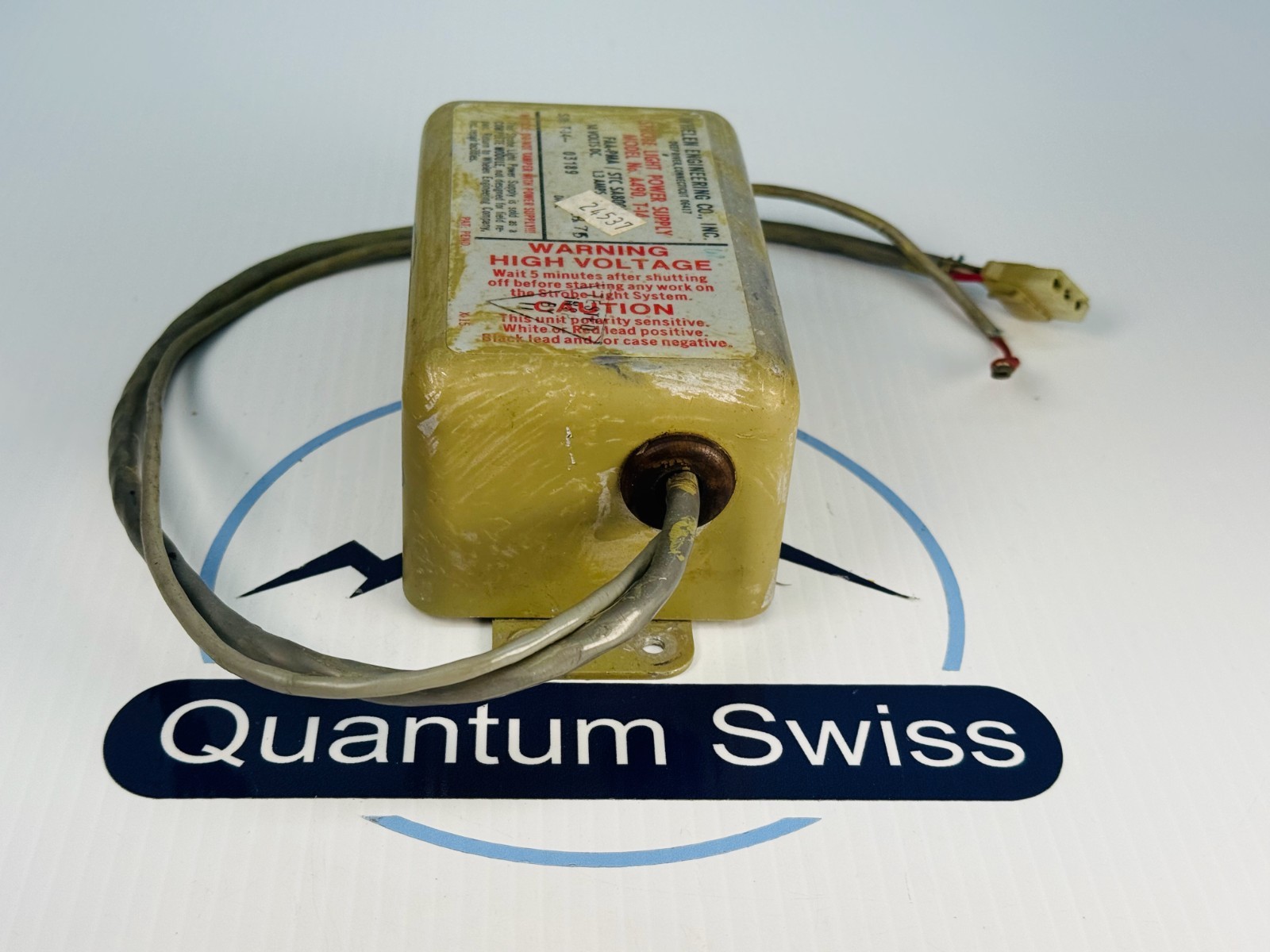

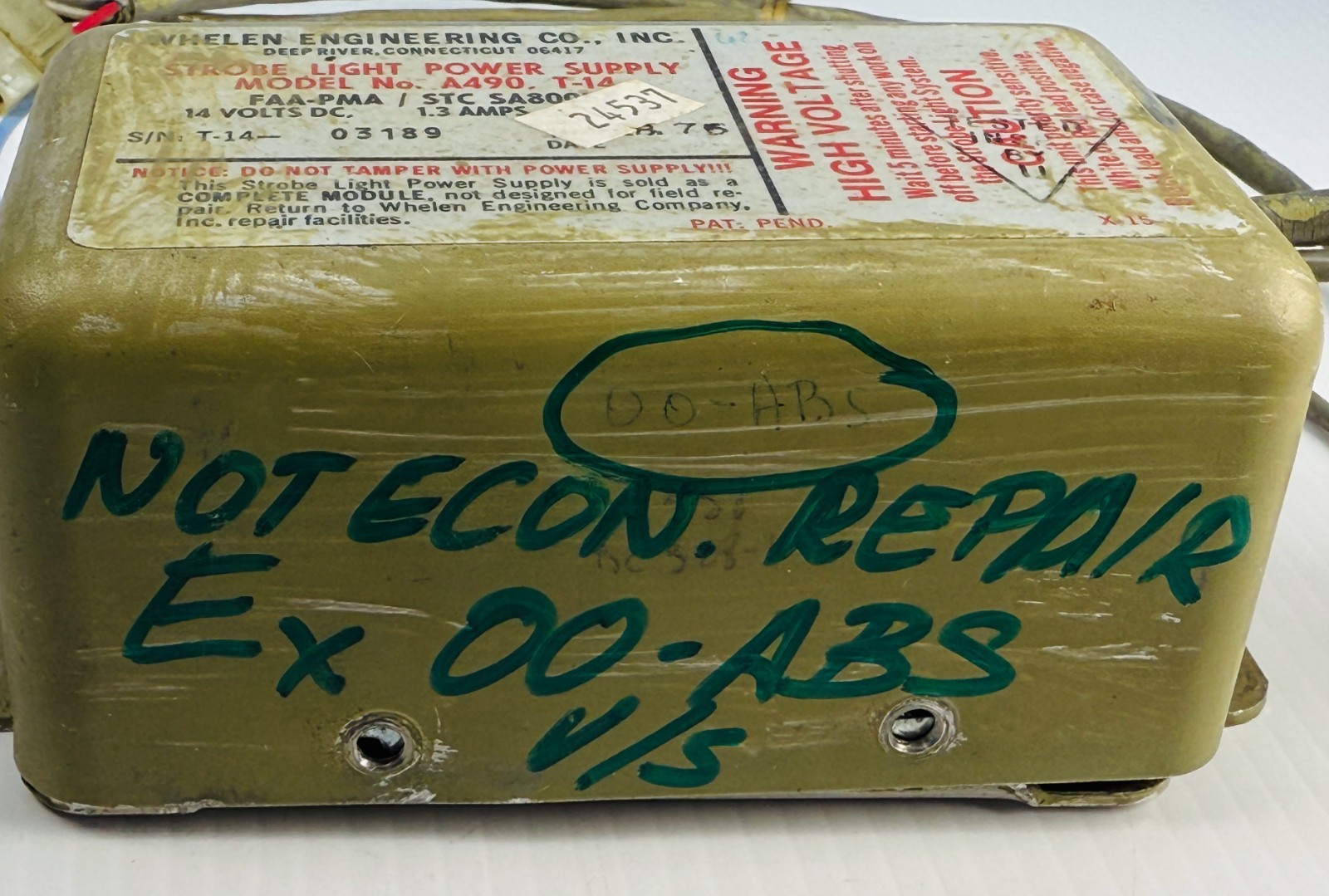

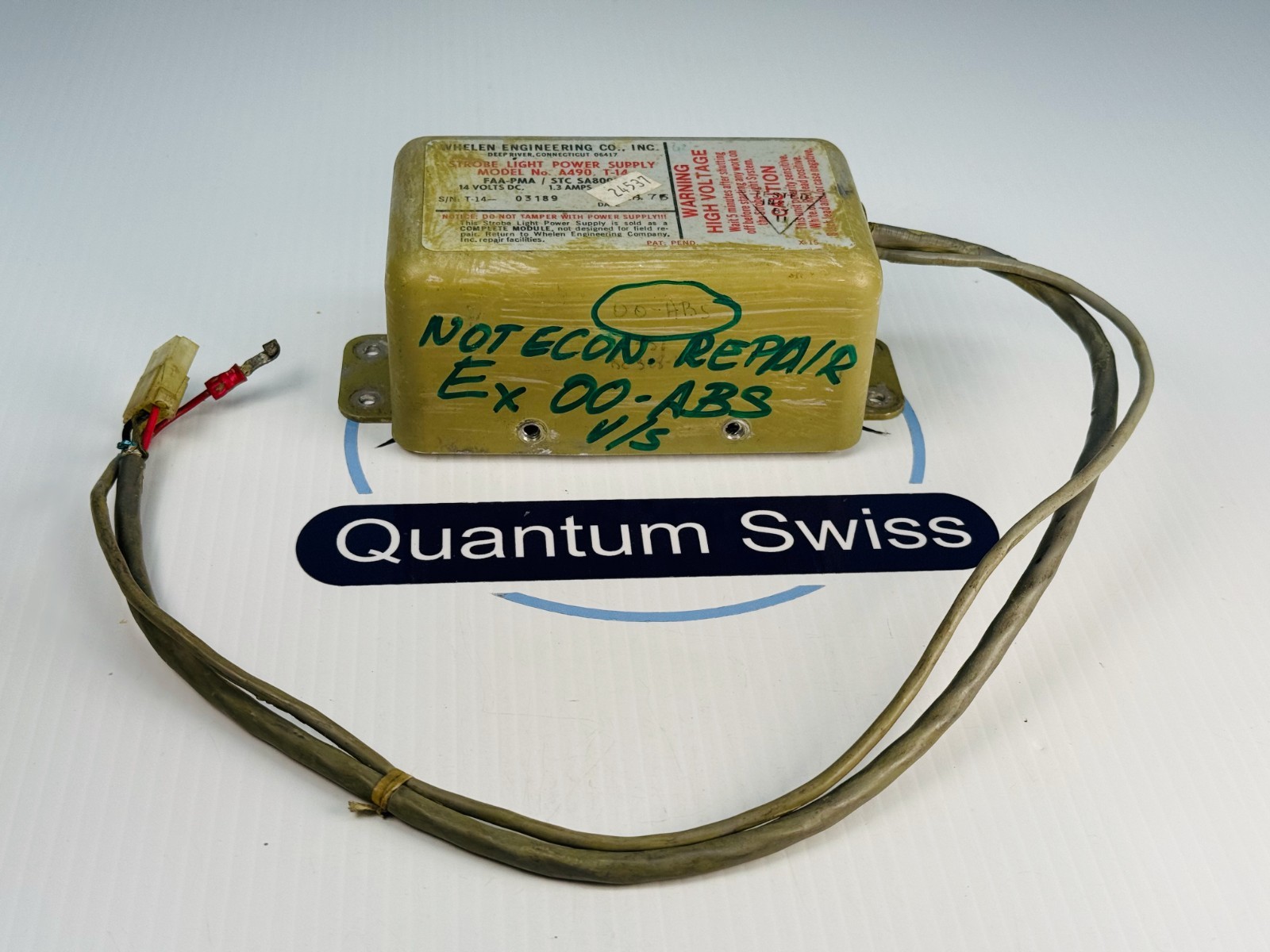

The assembly includes its metal enclosure, attached interconnecting cable, wiring leads, connector, terminals, and mounting flanges. The housing has handwritten repair-shop markings stating “NOT ECON. REPAIR,” so this unit should not be represented as serviceable or ready for aircraft installation.

Whelen documentation describes A490-family power supplies as remote aircraft strobe units designed to operate a single strobe lighthead. Exact compatibility, wiring, and installation approval for this earlier T-14 configuration must be verified using the applicable aircraft maintenance records and approved technical data.

Identification Details

Manufacturer: Whelen Engineering Co., Inc.

Model: A490 T-14

Component: Aircraft strobe-light power supply

Input Voltage: 14 VDC

Rated Current: 1.3 amps

Serial Number: T-14-03189

Approval Marking: FAA-PMA / STC SA800-series

Additional Inventory Marking: 24537

Manufacturer Location: Deep River, Connecticut

Repair Marking: NOT ECON. REPAIR

Key Features

Genuine Whelen aircraft lighting component

Legacy A490 T-14 configuration

Remote strobe-light power-supply module

Designed for a 14-volt DC aircraft electrical system

Rated at 1.3 amps

Integrated metal enclosure

Attached shielded interconnecting cable

Attached electrical leads and connector

Four-hole mounting-flange arrangement

Original identification and high-voltage warning labels

Suitable for parts, repair, overhaul, core, training, or display use
