Airplane drawings gearbox-plans Gear Reducer

Description

Airplane drawings gearbox-plans Gear Reducer — $36.

Specs

• Make / Model: Airplane drawings gearbox-plans Gear Reducer
• Condition: New
• Location: Almaty

Summary

Airplane gearbox drawings-PDF-Gear Reducer airplane gearbox plans-"Drawings". Gallas Gearbox - Gear Reducer - PLANS. This is not a finished gearbox;. Ivan Gallas-designed gearbox (milled housing). The gearbox drawings are available in PDF and JPEG formats.

Description

Airplane gearbox drawings-PDF-Gear Reducer airplane gearbox plans-"Drawings"

Gallas Gearbox - Gear Reducer - PLANS.

"Drawings" - Gear Reducer.

Attention!

This is not a finished gearbox;

these are drawings and plans for construction in a home workshop.

All files are in PDF and JPEG formats.

All information is in Russian, but this can be translated using Google Translate. I will only send you the drawings; unfortunately, detailed instructions and manufacturing descriptions are not included in the files.

All drawings include dimensions for turning operations.

Type: This is a mechanical gear reducer, using toothed pinions to transmit power and reduce rotational speed.

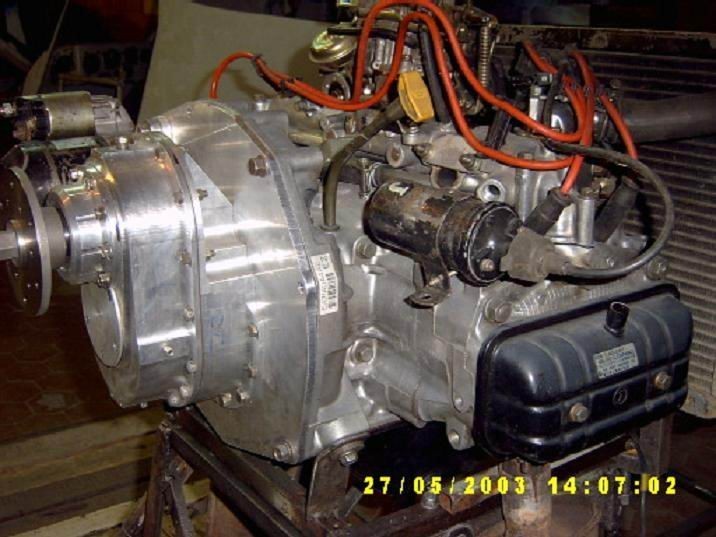

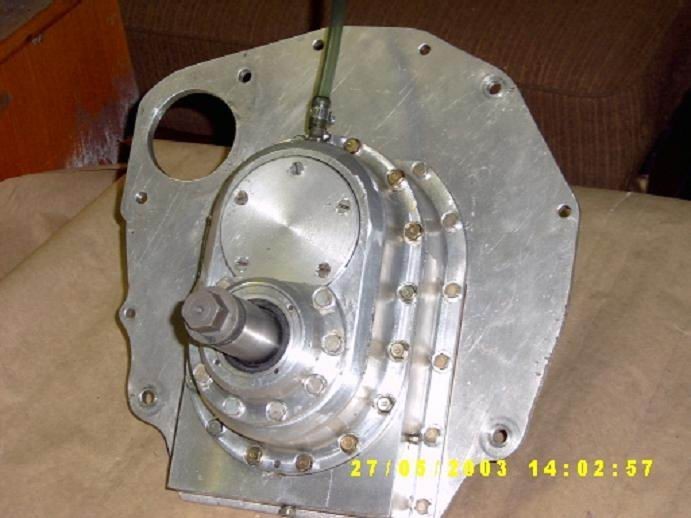

Ivan Gallas-designed gearbox (milled housing)

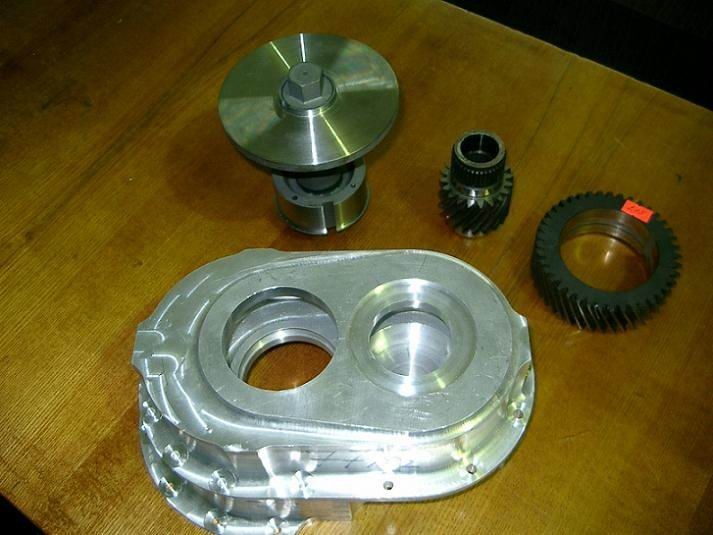

The gearbox is easy to manufacture (no casting required; the housing is milled from an Al alloy). Compact, weighing approximately 6.5 kg.

Designed for power outputs up to 75-80 hp. It is a single-stage, enclosed gear reducer with a 1:3 gear ratio. The high-speed hub is standardized to fit Rotax dimensions.

Lubrication is by mixing transmission oil (50 ml); a mechanical impurity trap is included. The pinion and wheel are mounted on two bearings, with a design life of 1200 m3/hour.

Mounting bracket: An aluminum or metal component that holds the entire assembly together.

Fasteners: Bolts and nuts for assembly.

Function: The system is designed to vary torque and angular velocity between two shafts, typically for speed reduction (gearbox).

Materials: The main metal is made of aluminum or steel.

The gearbox drawings are available in PDF and JPEG formats.

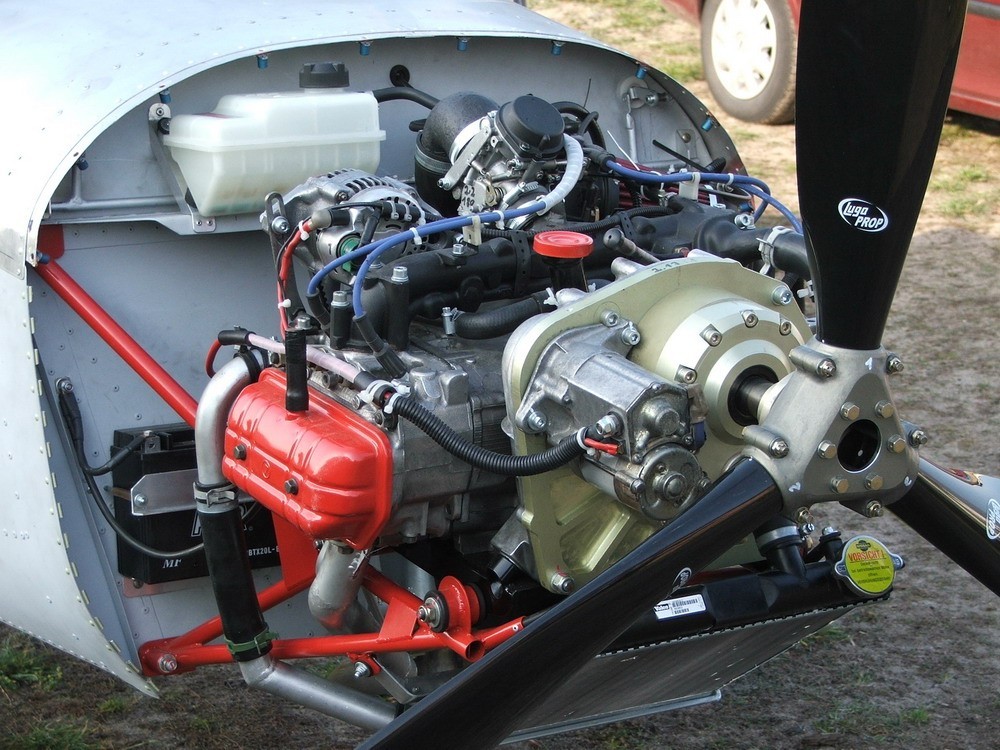

This gearbox is suitable for a homemade airplane, gyroplane, motorized hang glider, aerochute, and airboat.

READ THE DRAWINGS AND BUILD YOUR PROJECT.

See also my other auctions. I leave feedback for each of my clients if you do the same.

Have a nice day and happy trading.

Please note: This is not a physical product and will not be shipped. After payment, I will send you the files via eBay internal email. You can download them from the Google Drive link.
