Plans -Aircraft Plans–Bu.131 Jungmann–Homebuilt Airplane

Description

Aircraft Plans–Bu.131 Jungmann–Homebuilt Airplane Drawings

PDF Download

Bu.131 Jungmann - training aircraft developed by the

German company Bucker
Flugzeugbau.

A LITTLE HISTORY ON PLANE

Company's

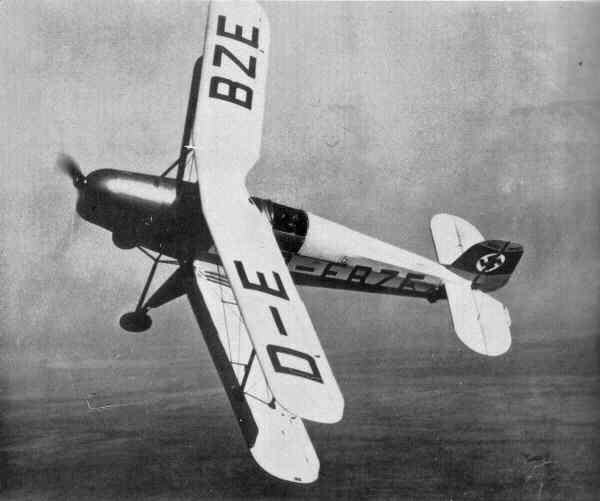

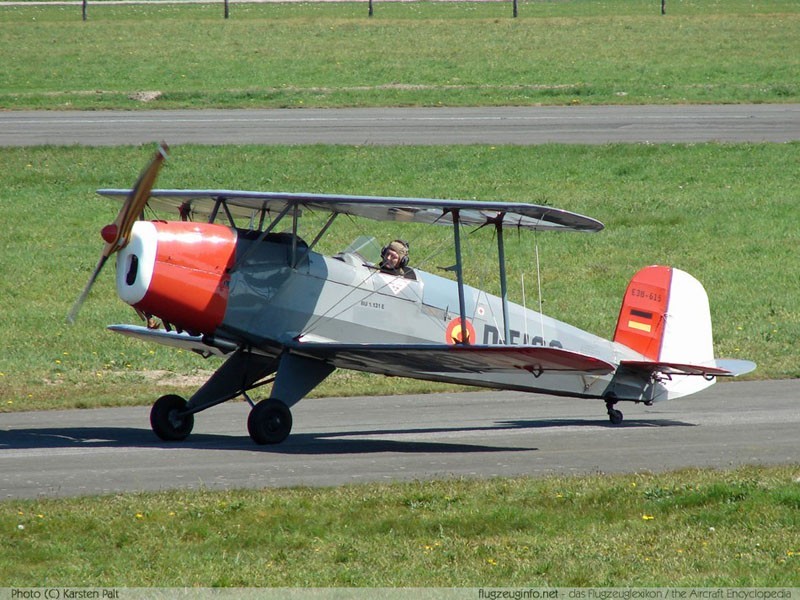

first product was a Bucker two-seat light training aircraft, known as Bu.131
Jungmann.
Designed by chief designer of the company Swede A. Anderson, he is an
ordinary one-compartment wooden biplane wings covered with fabric covering.
The
skeleton of the fuselage is made of welded steel pipe and also covered with
fabric covering areas except around the cabin and the engine trimmed with light
alloy.
The empennage was stretching the wire, and its power structure was
similar to the fuselage structure.
Three-wheel main landing gear with a tail
wheel is very much came forward and thrust the aircraft prototype made its
first flight on April 27, 1934.,
Created inline engine Hirth HM 60R capacity of
80 liters. p.

Initial
production version, which had the designation Bu.131A, proved to be very
successful and made for civilian flight schools, and for the Luftwaffe.
Aircraft were also exported to Hungary (100) and Romania (150).
In addition to
75 cars were built under license in Switzerland, and Japan built in 1037
licensed aircraft under the designation Ki-86A Type 4 Primary Trainer.
This
aircraft followed the serial production of aircraft K9W1 Navy Type 2 Primary
Trainer Model 11, which were produced for the Japanese Navy under license by
Watanabe.
Data on the number of aircraft built vary in the range from 217 to
339.
During the Second World War planes Bu 131A Luftwaffe used, including in
the auxiliary squadrons attack aircraft. Many Bu 131 survived the war and even
built by Aero in the 50s. under the designation C4.

Bu.131
Jungmann - trainer

aircraft
building itself.

Full drawings
light aircraft

Bu.131
Jungmann

DIGITAL
DOWNLOAD – NO PHYSICAL ITEM

This listing
contains digital aircraft plans and drawings.

MODEL NAME:

Bu.131
Jungmann

DESCRIPTION:

A collection
of aircraft drawings and technical illustrations suitable for aviation
enthusiasts, homebuilders, and collectors.

INCLUDED
FILES:

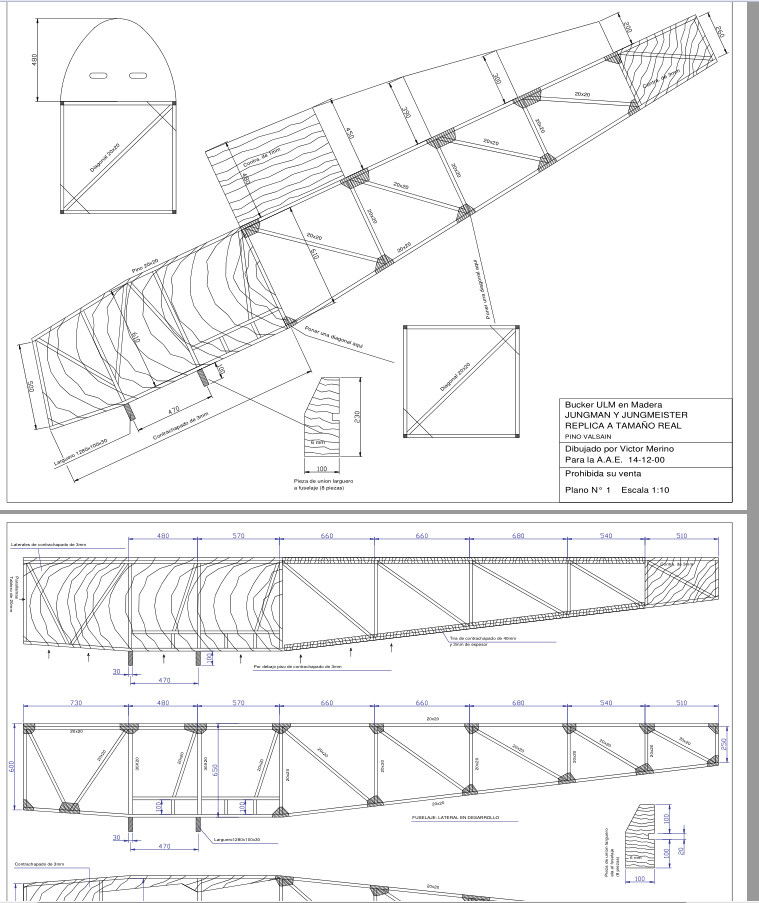

• Technical
drawings

• Structural
diagrams

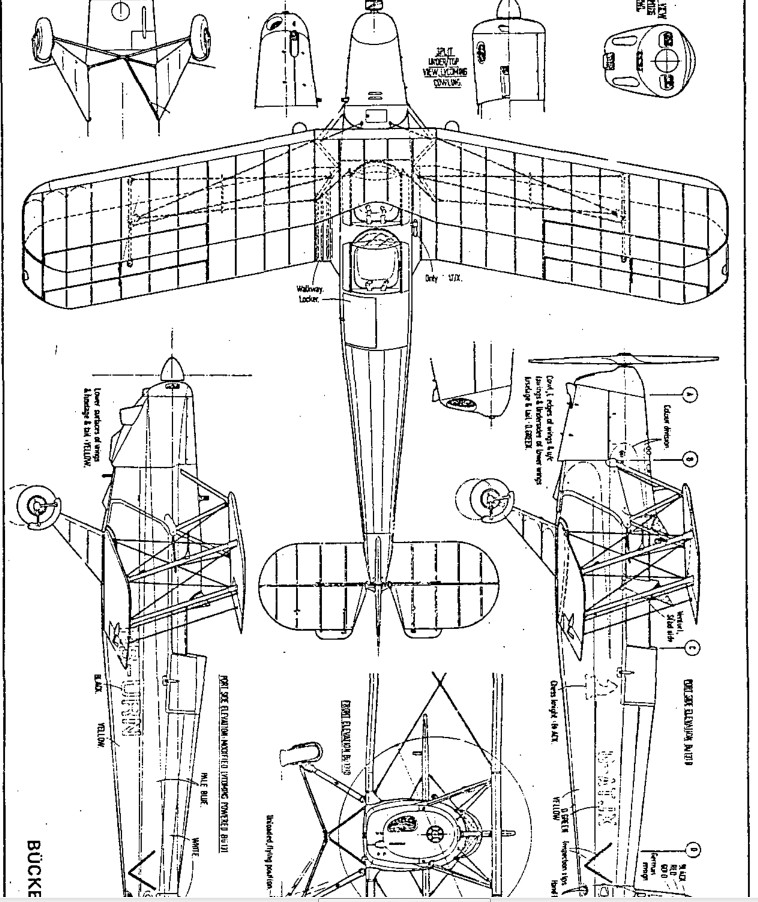

• General
layout views

•
High-resolution scans

FORMAT:

• PDF / JPG

•
High-quality digital files

DELIVERY
METHOD:

• Digital
delivery via eBay messages

• Instant
access after purchase

DISCLAIMER:

• For
reference and educational purposes only

• Personal
use only

You will
receive exactly what is shown in the images.

Attention.

All images
are taken free access to Google images and does not violate copyright.

I trade information and help solve your
problem.

Save your
time !!!

Buying these drawings, you acknowledge that
you have read this information!
