Drawings ARGO aircraft - 02 for self-built,Plans. Drawings aircraft ARGO - in Russian. One of the simplest and most common aircraft building itself. Download drawing Argo 02 aircraft, you can at the bottom of the page.

Description

Plans ,,Argo-02,, Light Aircraft Plans-DIY Homebuilt Airplane Drawings – PDF. JPEG

Drawings ARGO aircraft - 02 for self-built,Plans

Drawings aircraft ARGO - in Russian.

You can easily make the translation into your language.

One of the simplest and most common aircraft building itself. Download drawing Argo 02 aircraft, you can at the bottom of the page.

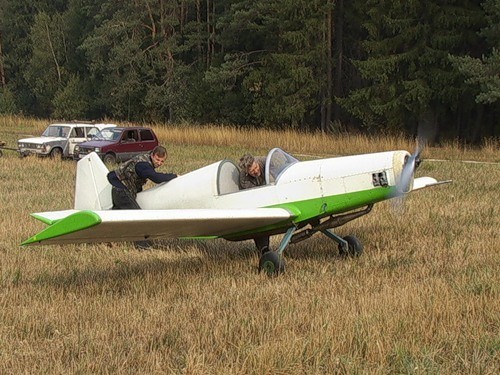

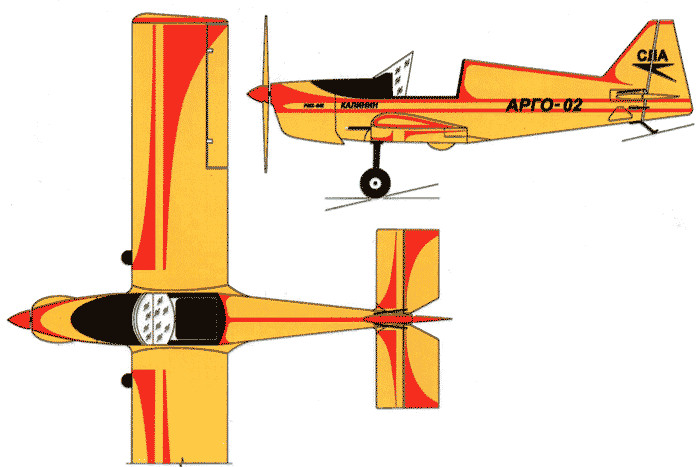

"Argo-02" - ultralight trainer classical cantilever monoplane of wooden construction with bottom-wing cantilever and tail. The aircraft has a chassis spring type with tail wheel.

The power plant of the aircraft - a two-stroke twin-cylinder air-cooled engine type RMZ-640,

Rotax, which through V-belt gear drives the two-bladed wooden propeller monoblock.

The control system of the aircraft "Argo-02" - normal type.

Argo-02 Light Aircraft – Complete DIY Homebuilt Airplane Plans

Build your own light aircraft using detailed and proven Argo-02 construction plans.

This digital package includes technical drawings, layouts,

and structural diagrams designed for homebuilt aircraft enthusiasts, aviation hobbyists, and

experimental aircraft builders.

The plans cover fuselage, structure, dimensions, and assembly details, making them

suitable for garage or workshop construction.

What’s included:

Complete Argo-02 aircraft drawings

Structural and assembly diagrams

Detailed measurements and layouts

File formats:

PDF,DOC,JPEG

Product type:

Digital download.

Instant access after purchase

No physical item will be shipped

Perfect for DIY builders, aviation enthusiasts, and experimental aircraft projects.

The cockpit is equipped with instruments and aerobatic team of engine control instruments.

Flight and technical information about aircraft ARGO-02

Length, m ...... .. 4.55

Height, m ...... .. 1.8

Wing span, m ... .. 6.3

Wing area, m2 .... 6.3

Narrowing wing ...... 0

End wing chord, m. ... MAR 1.0, 1.0 m .........

The installation angle of the wing, hail. . . 4

Angle V, hail. ....... 4

Sweep angle, deg. . . 0

Aerofoil. . P-III-15,5%

Area aileron m2. . . 0,375

The scope of the aileron, m.. . . . 1.5

Aileron angles, degrees .:

up ...... .. 25

down ...... .. 16

Swipe GO m. . . . ,. 1.86

Area Defense, m2 ...... 1.2

Installation angle GO degrees. 0 ...

PB area, m2. . . . . 0.642

IN area, m2 ... .. 0.66

IN Height, m. ...... 1.0

Area ROP m2. . . . . 0.38

Deflection angle RN, hail. . ± 25

Deflection angle PB degrees. , ± 25

The width of the fuselage for the cabin, m. . . . 0.55

The height of the fuselage for the cabin, m ...... 0.85

Base wheel chassis, m. . . 2.9 Track chassis, m ...... 1.3

Powerplant - RMZ-640 engine with a silencer, cooling air

Power, L. p. ...... 28

Max, speed, 1 / min ...... .. 5500

Reducer. . . V-belt, chetyrehruchevy, belts A-710

Gear ratio .... 0.5

Fuel ... .. gasoline A-76

Oil ...... .. MS-20

Screw diameter, m. . . . . 1.5

Pitch, 0.95 m ......

Static thrust, kgf .... 95

Weight of empty machine kg. . 145

Maximum take-off weight, kg. . . . . . . . 235

Fuel capacity, l ...... 15

Flight range of CG, MAR ...... .. 24 ... 27

Stall speed, km / h. . 72

Max speed horizontal flight, km / h ... .. 160

Max speed piloting km / h ......... 190

Cruising speed, km / h ... 120

Lift-off speed, km / h ... 80

Landing speed, km / h. . 70

Climb from the earth, m / s .......... 2

Run, m ...... .. 100

Mileage, m ...... .. 80

The range of operating loads. .... + -1.5 W ...

Dimensions in transportation, m ....... 5X2,3X1,8

Fuselage - wood, diagonally - uniform design. Fuselage spars are made of wooden slats section 18X18 mm.
