Plans Ultralight Aircraft ,,Cri-Cri ,,Plans

Description

Plans Ultralight Aircraft ,,Cri-Cri ,,Plans — $50.

Specs

• Make / Model: Plans Ultralight Aircraft ,,Cri-Cri ,,Plans
• Condition: New
• Location: Almaty

Summary

Ultralight Aircraft Cri-Cri Aircraft. But the most famous of ultralight planes are "Cri-Cri" Colombano (which was featured in the film "Armor of God" with Jackie Chan in Sec. Role) and his Russian counterpart - Ulyanovsk "E-12.".

Description

Ultralight Aircraft Cri-Cri Aircraft.

Plans aircraft Cri-Cri.PDF.

Cree-plane crystal

But the most famous of ultralight planes are "Cri-Cri" Colombano (which was featured in the film "Armor of God" with Jackie Chan in Sec. Role) and his Russian counterpart - Ulyanovsk "E-12." Both aircraft are equipped with two low-power engines pulling.

The difference between the Kree-Kree from the E-12 in a closed cockpit, improved aerodynamics and low-set wings (Cri-Cri - nizkoplan

Performance specifications "Cree-Kree"

full wing span, m

4.9

wing chord (no flaps), m

0.48

wing chord (with flaps), m

0.63

total wing area, m

3.1

aspect ratio

7.75

transverse angle of the wing (from the root), degrees

4

twist wing deg.

-1.5

type ailerons

Junkers

full length, m

3.91

Total height, m

1.2

scope G.O, m

1.55

G.O chord, m

0.395

Wheel track, m

1.1

base chassis, m

1.15

diameter propellers, m

0.695

base of propellers, m

0.95

length of the cockpit, m

1.3

width of the cockpit, m

0.55

height of the cockpit, m

0.82

airfoil

Wortmann

nose wheel diameter in mm

200h50

diameter main wheels, mm

210h70

engine, 2 pcs.

JPX PUL-212

power, 2 pcs.

15 hp

speed, rev / min

6000

Fuel tank capacity, l

23

maximum empty weight, kg

75

maximum takeoff weight, kg

170

max. speed in a dive, km / h

280

max. horizontal velocity, km / h

220

max. Cruising speed, km / h

200

flaps are omitted

72

flaps removed

93

max. rate of climb, m / s

6.5

max. climb (one engine), m / s

1.5

Service ceiling, m

5000

take-off run, m

100

distance at H = 15 m, m

300

run, m

150

distance from H = 15 m, m

350

max. range, km

400

flight time, h

3

fuel consumption l/100 km

5

max. overload, g

+10 / -5

max. Aerodynamic. quality

11

I'll send the files to your email in the archive.

I am not responsible for the mistakes I just prodovets designer.

Drawings in pdf, you can easily print on your home printer and build your plane.

Attention!

By default it will be sent to email (dog).

All description plans in Russian,

Plane possesses

very high runway performance and that especially

important, very maneuverable.

These features allow you to use the plane at the first level of the class.

in flying clubs and

hold the original flight complex

tests that are not subject to

excessive danger.

According to the norm they carry from tests or during accumulation of experience.

and piloting skills.

Description of the aircraft is completely in Russian.

Attention.

Email me, feel free to ask questions.

This is a Russian aircraft and the development of Russian engineers.

Save your time !!! Buying these drawings, you build your light aircraft!

I will ship worldwide.

In my opinion, the drawings are not fully detailed,

but they will create a new idea for you.

I am only a seller, also not responsible for any errors

designer.

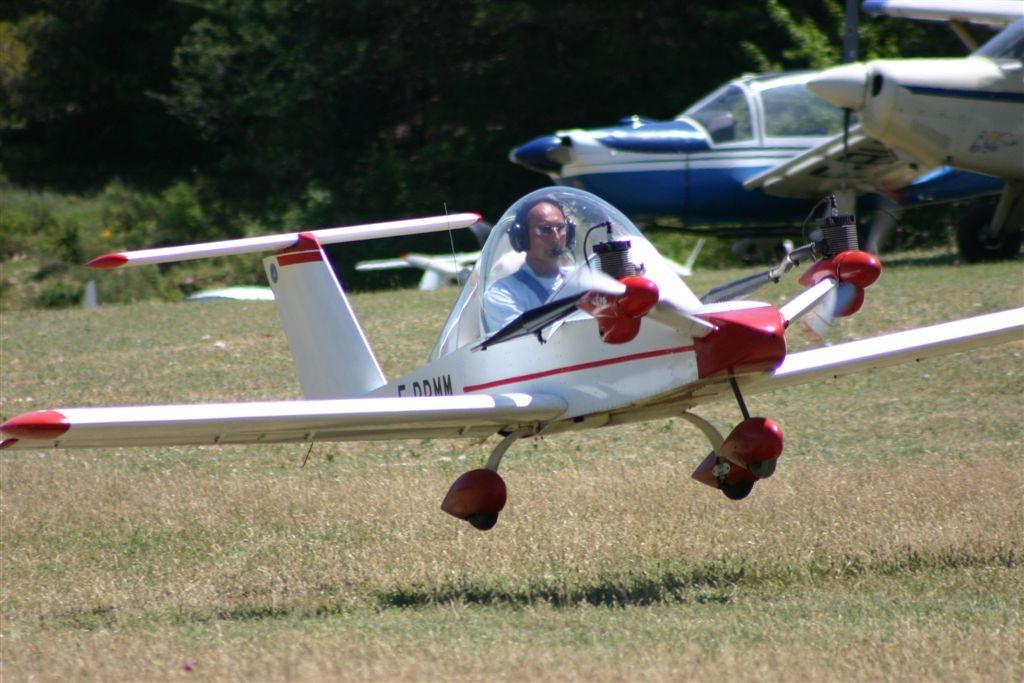

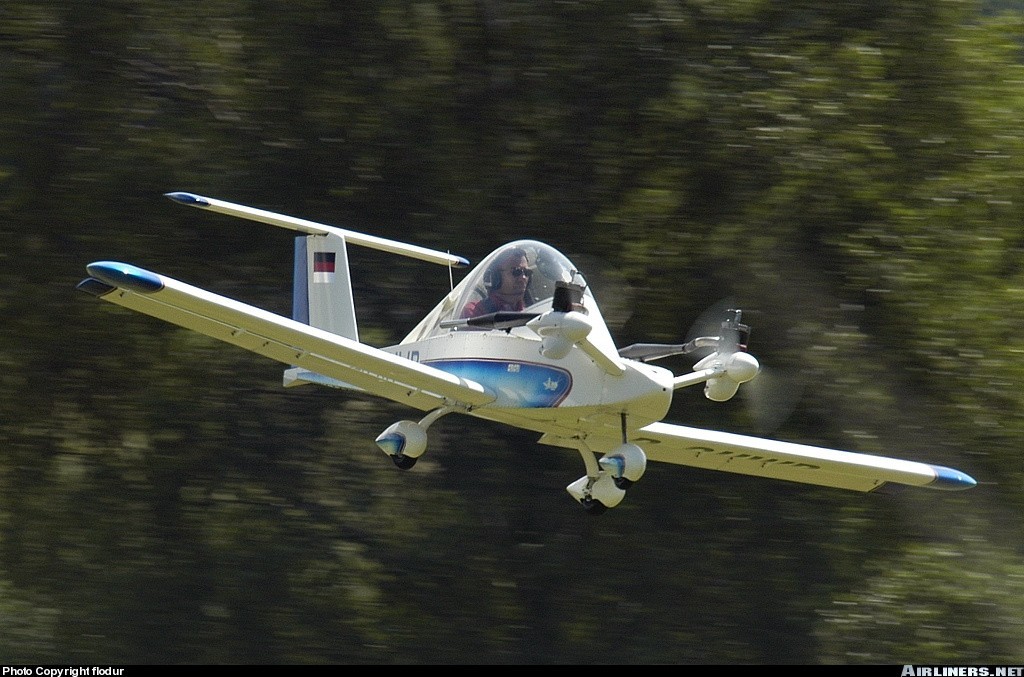

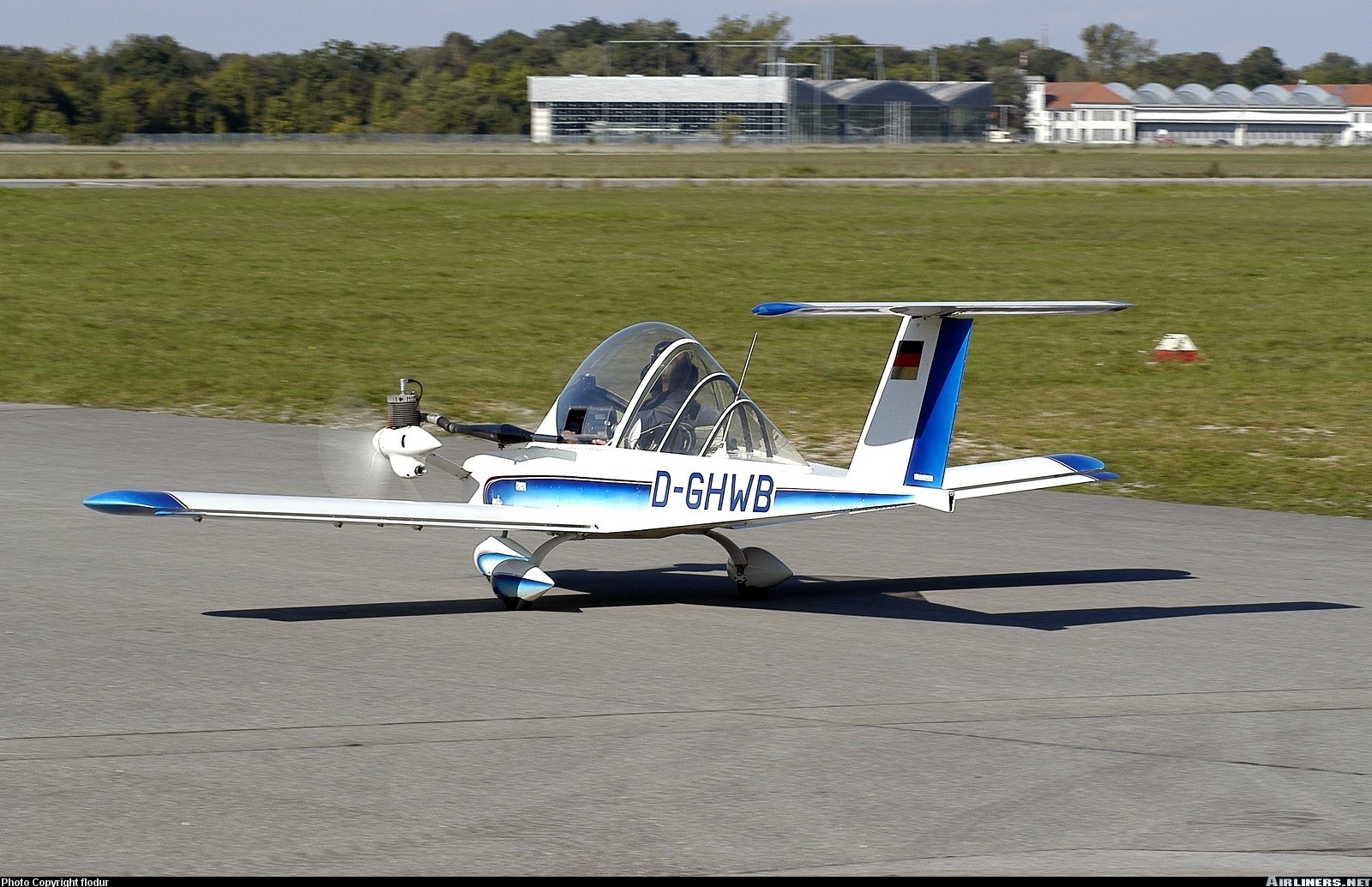

You will receive a lot of photos of this aircraft.

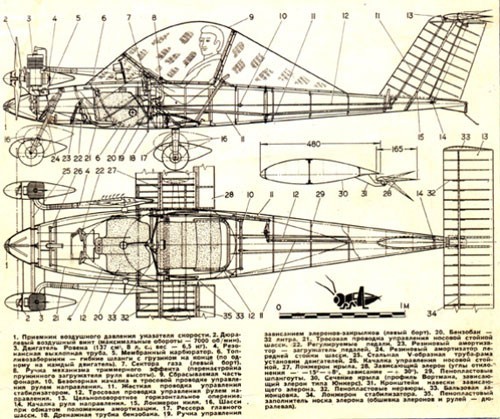

You will receive the diagrams and some drawings in jpg format.

In the drawings there are drawings of some nodes and connections,

There are drawings of the cabin, wing, ailerons, stabilizer and a few more elements.

I can not tell you that all the drawings are detailed, but they can give you a great idea to build your small plane.

I can not give you a guarantee of very accurate drawings.

I am only a seller, also not responsible for any errors

designer.

Have a great day and great trades !!!

---
