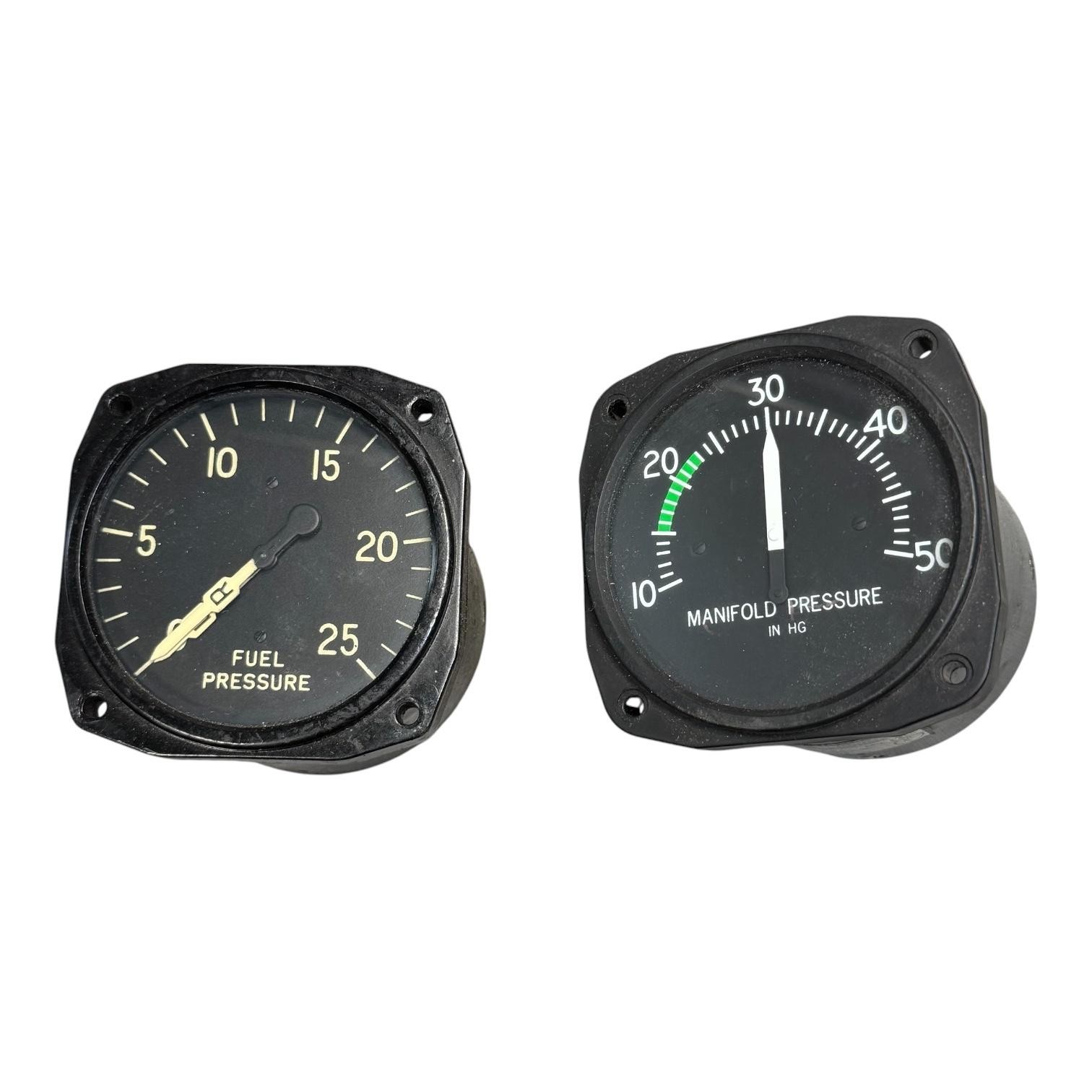

Cessna Vintage Manifold Pressure Gauge C662035-0101

Description

Vintage Cessna Manifold Pressure Gauge C662035-0101 Fuel Pressure AN 5772-1

Item: Cessna aircraft manifold pressure indicator with companion fuel pressure gauge and manifold assembly.

Brand/Manufacturer: Cessna manifold pressure indicator supplied by United Instruments, Inc., Wichita, Kansas, together with a fuel pressure assembly incorporating a Ranco Inc. AN 5772-1 manifold and West Coast Instrument Service markings.

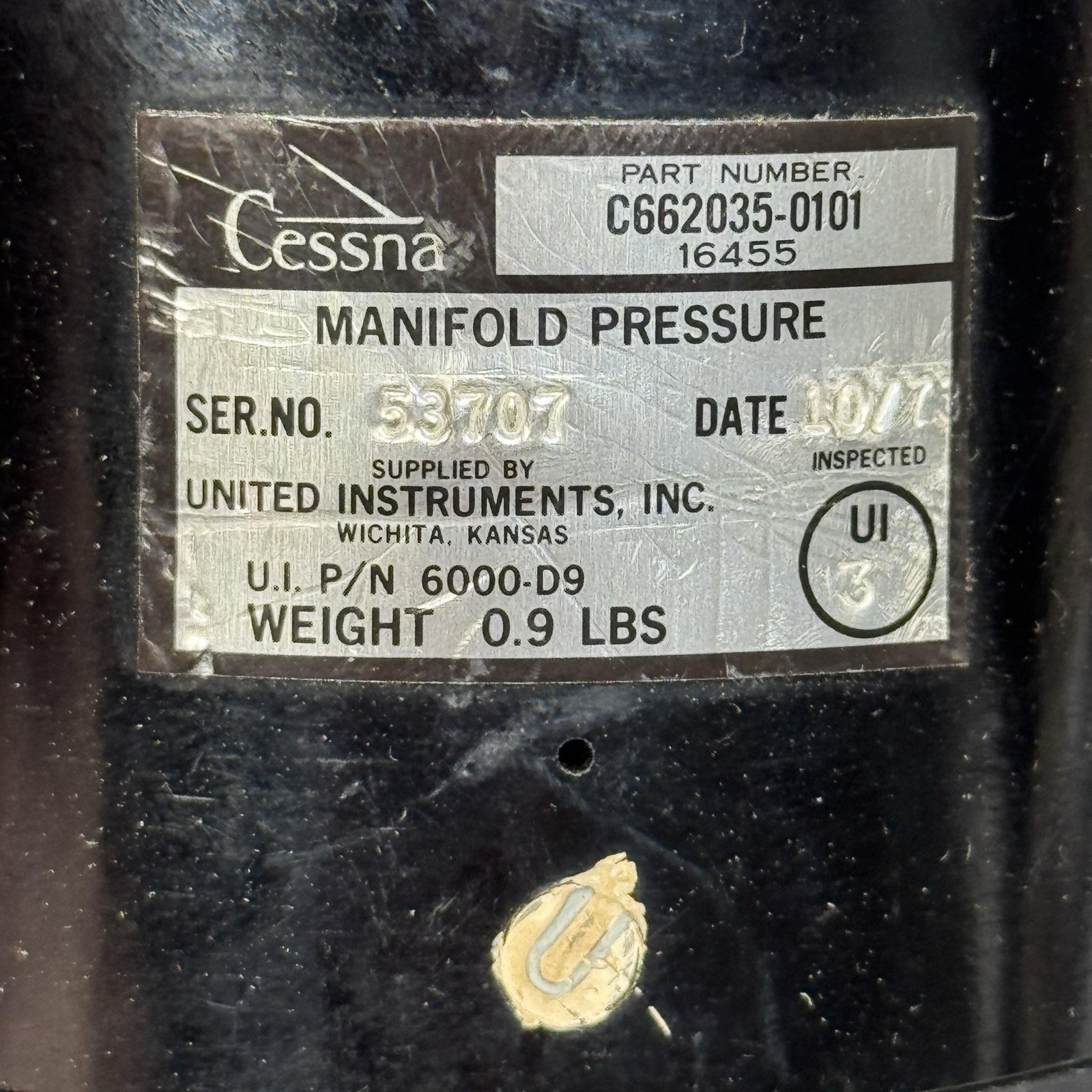

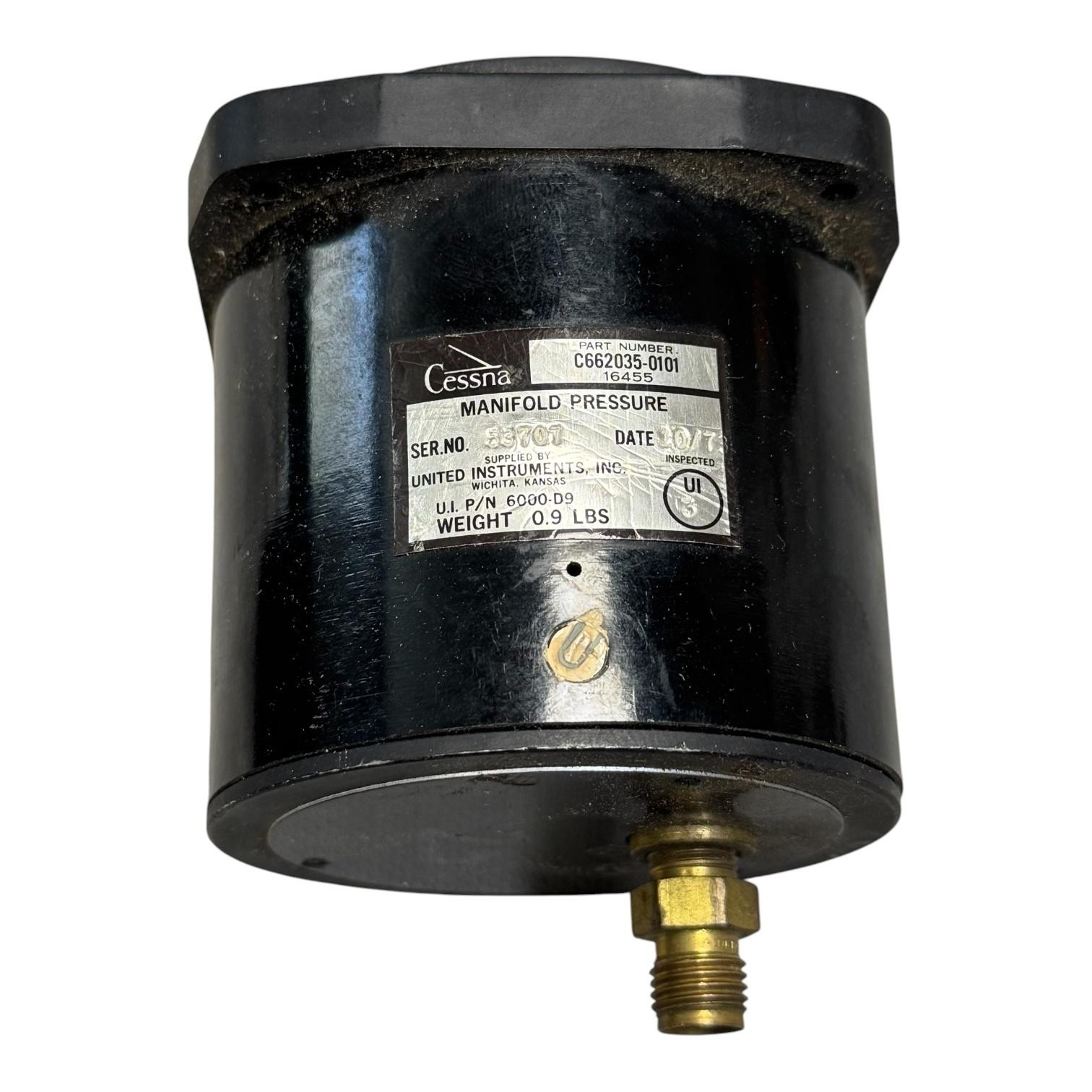

Part numbers and markings: Cessna data tag lists PART NUMBER C662035-0101 16455, date code 10/77, U.I. P/N 6000-D9, WEIGHT 0.9 LBS, and a UI inspection stamp. Fuel pressure body is stamped 634101 with WEST COAST INSTRUMENT SERVICE, FAA Sta. #4657, REPAIRED, and address 4310 Donald Douglas Dr., Long Beach, CA 90808. Top plate is marked AN 5772-1, MFR'S PART NO 31833, CONTR. NO AC 30137, and RANCO INC., COLUMBUS, O, with engraved legends TO RIGHT ENG., TO LEFT ENG., and port labels P.

Type: Panel-mounted analog engine instruments for cockpit indication of manifold pressure in inches of mercury and fuel pressure, with an integrated multi-port manifold intended for dual-engine fuel pressure connections.

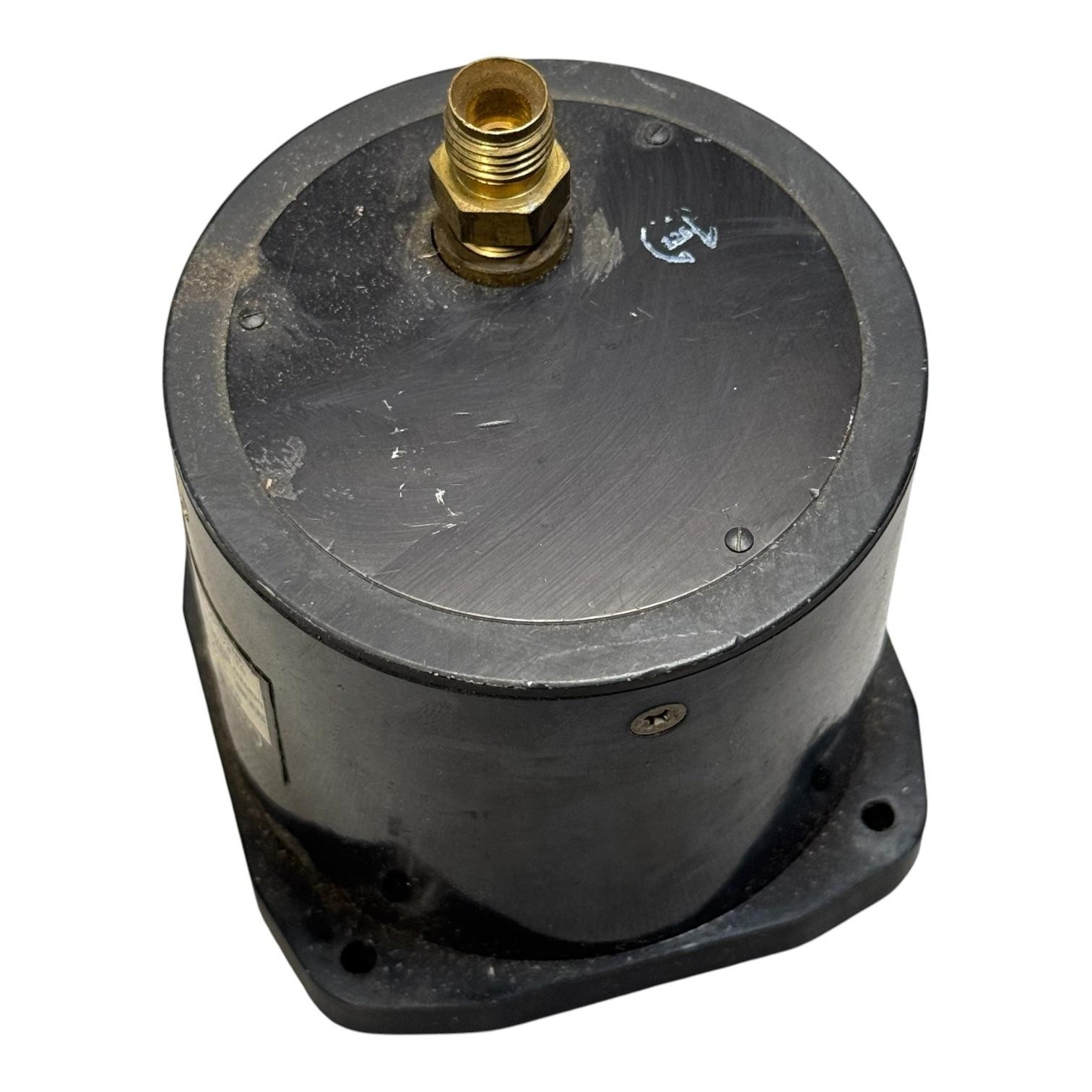

Construction: Black metal housings with four-hole square mounting flanges, circular instrument faces behind glass windows, rear pressure connection via threaded brass fitting on the manifold pressure gauge, and four yellow-bushed ports on the fuel pressure manifold body.

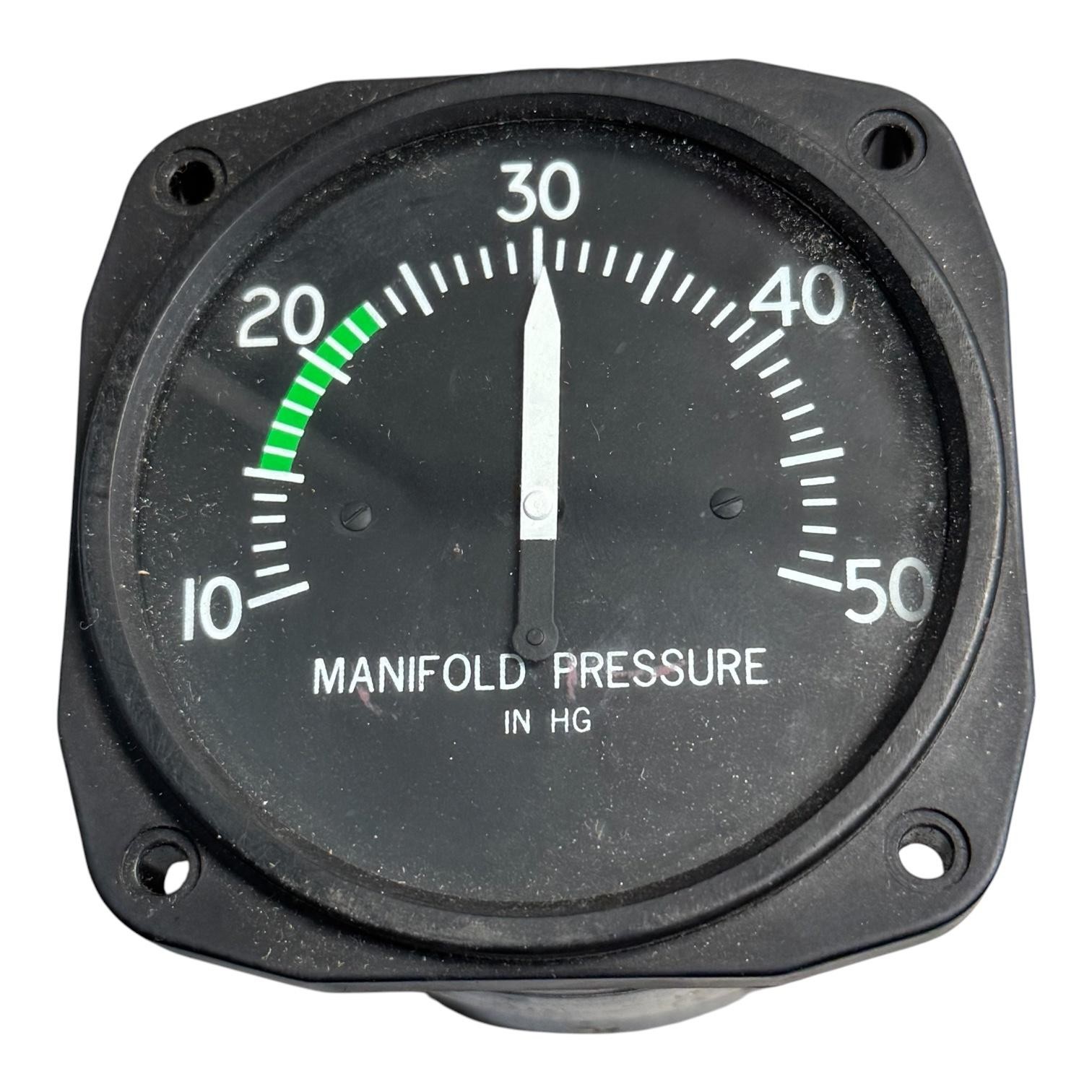

Features: Manifold pressure indicator face marked MANIFOLD PRESSURE IN HG with white numerals from 10 to 50 and a green arc in the lower operating range. Fuel pressure gauge face marked FUEL PRESSURE with white numerals from 0 to 25 and a cream-colored pointer, and a top plate directing lines TO RIGHT ENG. and TO LEFT ENG.

Specifications: Cessna manifold pressure indicator weight listed as 0.9 lbs on the data tag.

Fitment: Intended for Cessna aircraft applications using manifold pressure indicator P/N C662035-0101 / U.I. P/N 6000-D9 and fuel pressure systems using AN 5772-1 / 31833 components; verify part numbers and system configuration with your maintenance documentation before purchase.

Included: Manifold pressure gauge with attached rear brass fitting and Cessna/United Instruments data tag, plus fuel pressure gauge and attached AN 5772-1 Ranco manifold assembly only, as shown; no hoses, wiring, panel hardware, or additional accessories.

Use case: Suitable for Cessna instrument panel restoration, mock-up builds, training displays, or aviation instrument collections where these specific part numbers and markings are desired.

Condition: Pre-owned vintage manifold and fuel pressure gauges with heavy cosmetic wear from age and use. Glass windows are intact without cracks or chips but have surface scratches, dust, and light spotting. Black housings show scuffs, chipped and worn paint, edge wear around mounting holes, and grime and residue at seams. Data plates and stamped markings are scratched and stained yet remain legible; brass fitting and fuel manifold ports show tarnish, oxidation, and soiling, and yellow plastic inserts are discolored. Fuel pressure assembly bears a West Coast Instrument Service tag indicating prior repair. Units are untested and offered as parts, cores, or display pieces only, with no panel hardware, hoses, or wiring included.

Brand: Cessna
