Plans Aircraft–aircraft Jodel D11–Homebuilt Airplane

Description

Aircraft Plans – Drawings
aircraft ,,Jodel D11,,– Homebuilt Airplane Drawings PDF Download

These Jodel D11 aircraft plans are detailed digital blueprints designed for aviation enthusiasts and DIY builders who want to construct a classic French light aircraft.

The plans include high-quality construction drawings suitable for homebuilt aircraft projects, garage workshops, and educational purposes. Ideal for builders interested in vintage aircraft design, experimental aviation, or aircraft restoration references.

You will receive digital files only in PDF and JPEG formats, allowing easy viewing, printing, and scaling.

No physical item will be shipped.

Sending to your mail Dog.

✔ Product features:

Jodel D11 aircraft blueprints

Homebuilt airplane construction drawings

Classic French light aircraft design

Suitable for DIY and workshop builds

Digital download: PDF + JPEG

Perfect for:

Homebuilt aircraft projects

Aviation hobbyists & collectors

Experimental aircraft builders

Vintage aircraft enthusiasts

This listing is for DIGITAL
AIRCRAFT PLANS.

NO physical item
will be shipped.

You will receive a
set of historical aircraft drawings for the ultralight airplane "Jodel
D11".

These plans are
perfect for aviation enthusiasts, homebuilders, model makers, and collectors.

WHAT’S INCLUDED:

• Original aircraft
drawings and technical sketches • PDF

• General
arrangement views

• Structural details
(fuselage, wing, tail)

FILE FORMAT:

• PDF / JPG

DELIVERY:

• Instant digital
download

• Files will be
sent via eBay messages after purchase

IMPORTANT:

• Plans are
provided for reference, educational, and personal use only

• No guarantees or
technical support included

You will receive
exactly what is shown in the listing images.

If you have any
questions – feel free to ask before purchase.

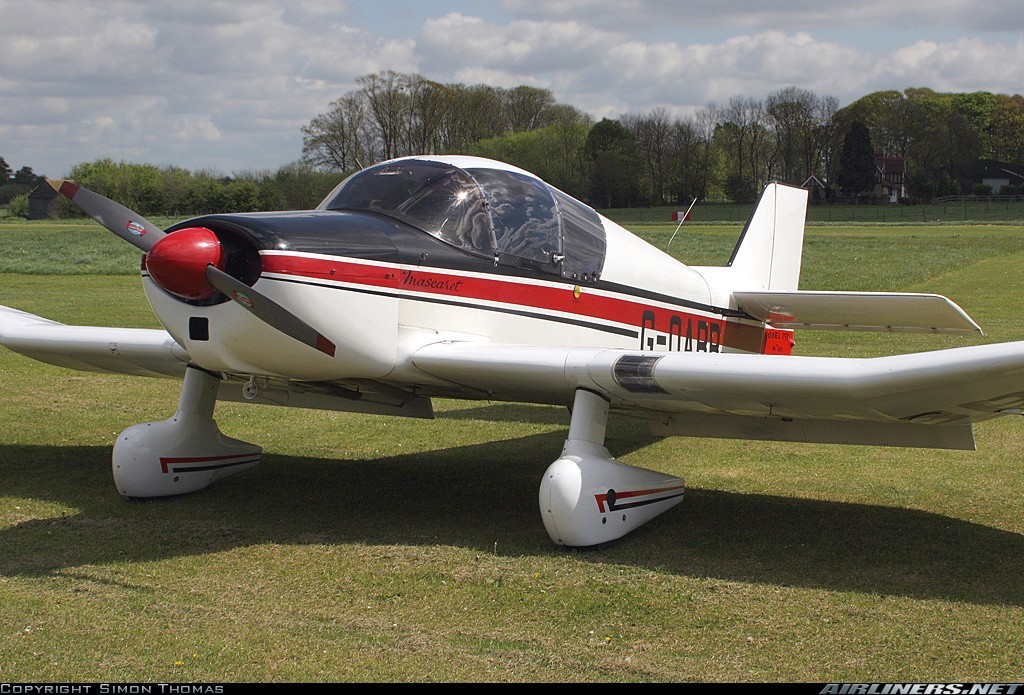

The Jodel D.11 is a French two-seat monoplane designed and developed by

Société
Avions Jodel in response to a French government request for a low-wing aircraft

for use by the nation's many emerging flying clubs.

Designers Édouard Joly and Jean Délémontez
based the design on two of their earlier projects;

they combined the wing of
the projected D.10

with a lengthened and widened version of the D.9 fuselage.

The first example flew on 4 April 1950.

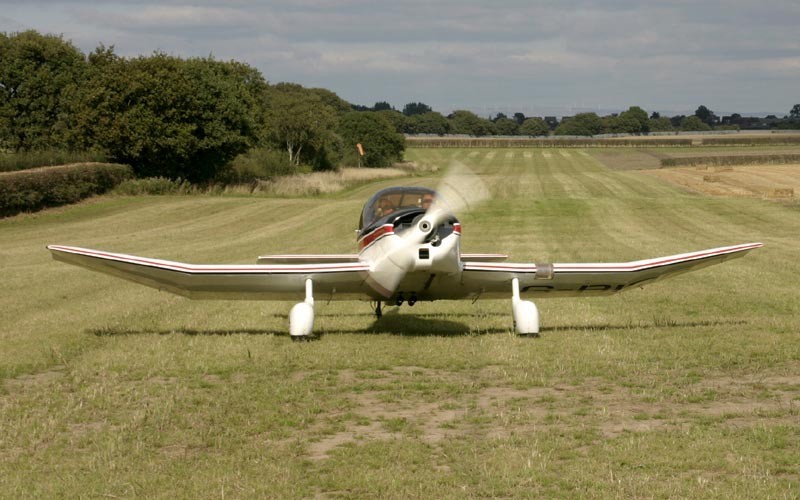

Of conventional tailwheel
configuration, the D11 featured a fixed,

spatted undercarriage, and
accommodated pilot and passenger side-by-side. The wing panels outboard of the

landing gear struts had a marked dihedral.

Various powerplants were installed,
typically Salmson 9, Continental A65 or Continental C90.

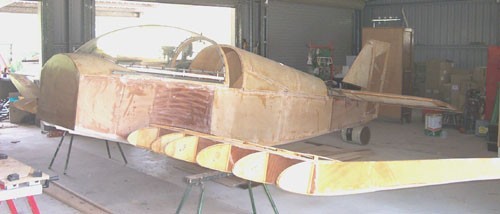

The aircraft uses
all-wood construction with a single piece box-spar.[1]

D.11s were licence-built by a number of
manufacturers in Europe and elsewhere,

including Wassmer, Aero Difusión, and
Falconar.

Many examples were also home-built with plans provided by Falconar.

Specifications (typical D.11 with Continental
O-200 engine)

General
characteristics

• Crew: one

• Capacity:
one passenger or student pilot

• Length:
6.2 m (20 ft 4 in)

• Wingspan:
8.2 m (26 ft 11 in)

• Wing
area: 12.7 m2 (137 sq ft)

• Empty
weight: 340 kg (750 lb)

• Gross
weight: 620 kg (1,367 lb)

• Powerplant:
1 × Continental O-200 4-cyl. air-cooled horizontally opposed piston engine, 75
kW (101 hp)

Performance

• Maximum
speed: 210 km/h (130 mph; 113 kn)

• Range:
900 km (559 mi; 486 nmi)

• Rate
of climb: 4.33 m/s (852 ft/min)

For digital download only, the item physically
won't be sent!

You accept that with the purchase!

An excellent and detailed material to build
ultralight

"
Drawings aircraft Jodel D11".

---
