Simplex Cloudster Wooden Airplane Plans

Description

Simplex Cloudster Wooden Airplane Plans – Digital Download.

Airplane Plans

The aircraft was designed
for safe low-altitude flight from unprepared surfaces.

The

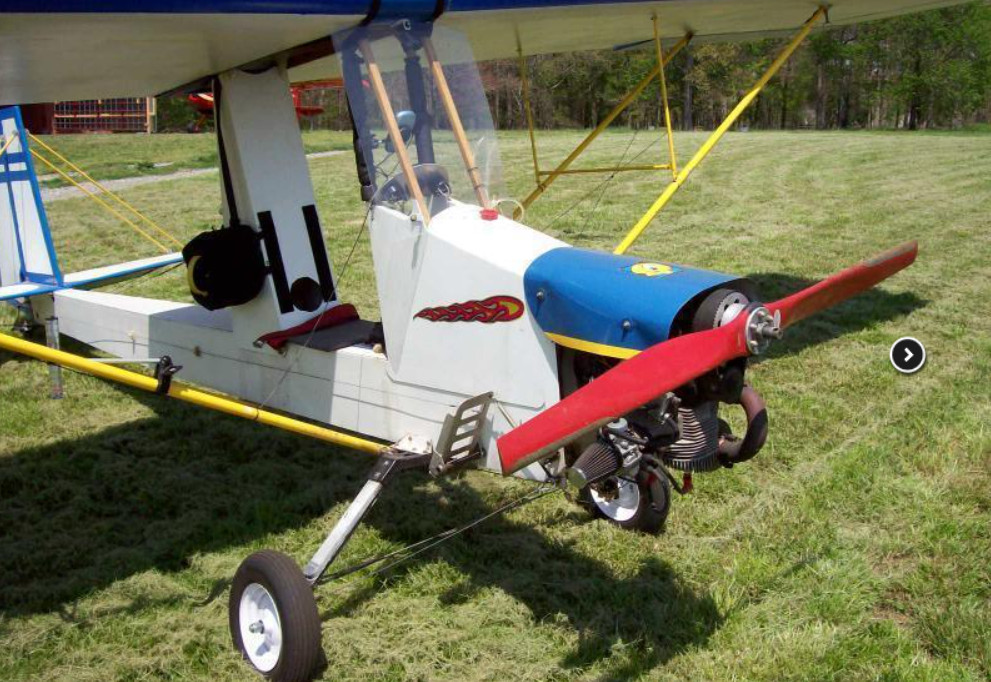

Cloudster is constructed of wood and covered in aircraft fabric. The landing
gear is conventional, with sprung main legs and a tailwheel. The wing is braced
with two parallel main legs and auxiliary legs on each side. Available engines
include a liquid-cooled Kawasaki 340-LC producing 35 hp (26 kW), a Half VW
producing 45 hp (34 kW), and several Rotax and Cuyuna engines. The designer's
recommended power range is 28 to 40 hp (21 to 30 kW).

Due to the
labor-intensive wood and fabric construction, the kit's assembly time is
estimated at 400 man-hours. The kit can be ordered as a single kit or as multiple
individual kits.

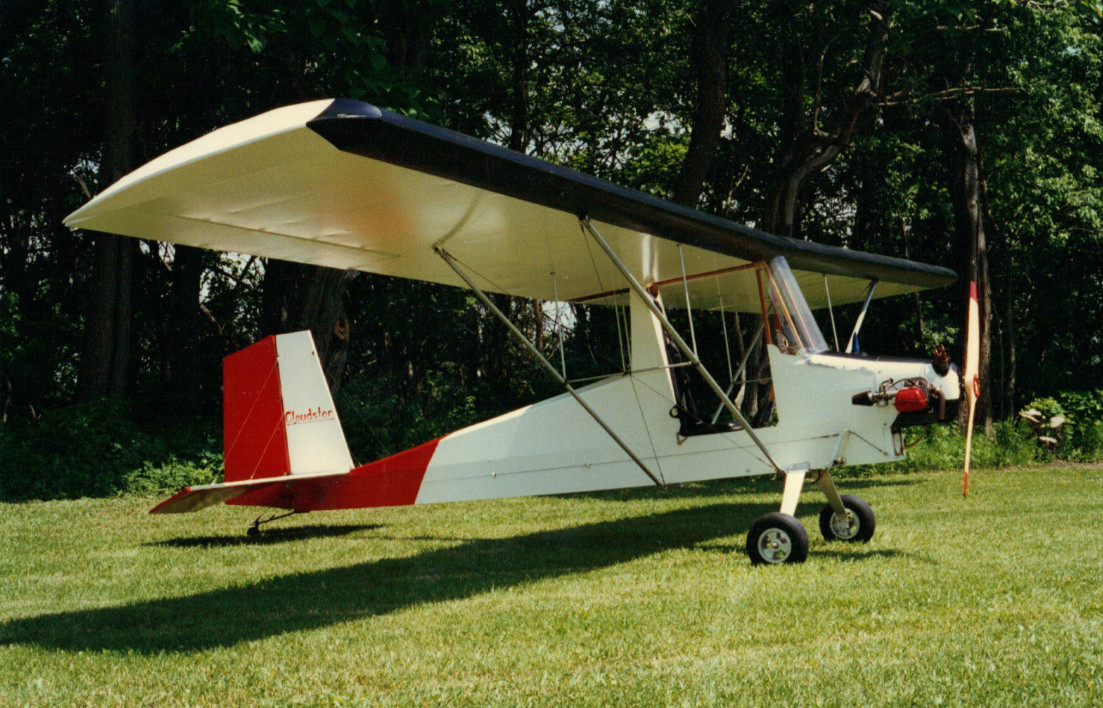

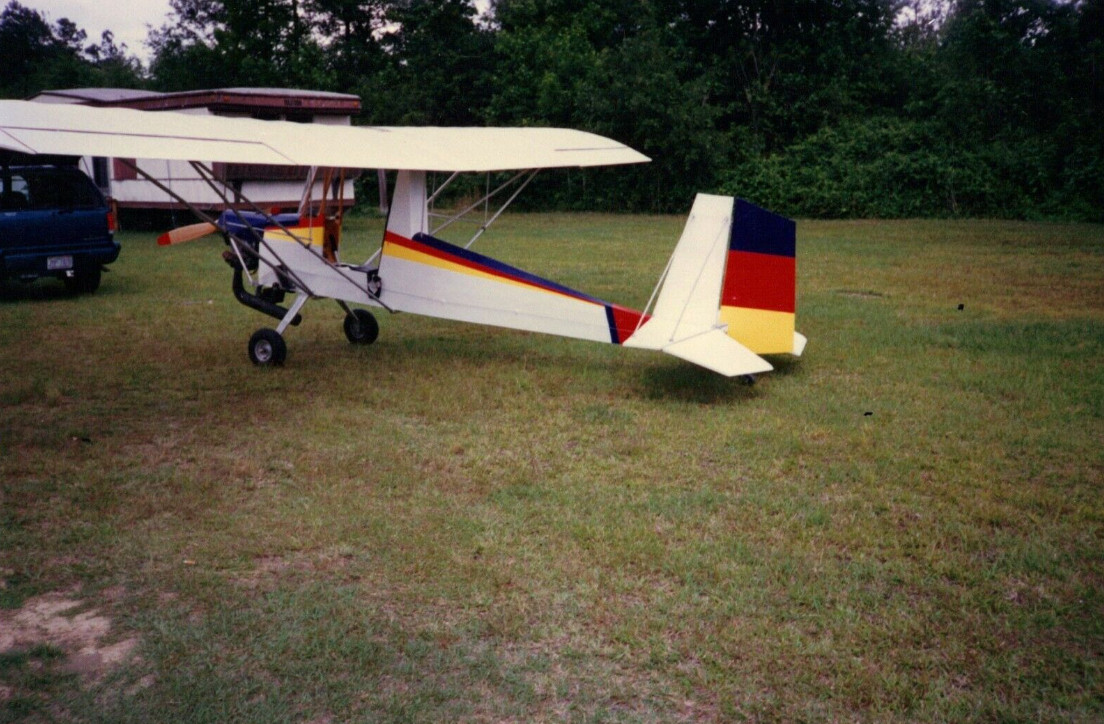

The Pop's
Props Cloudster is a single-seat, single-engine, open-cockpit, parasol-wing
monoplane that first flew in 1995. The aircraft was manufactured by Pop's Props
of Cooksville, Illinois, and sold as plans or as a kit. The company is now out
of business.

The
aircraft was designed for the FAR 103 ultralight category, including the
category's 254-pound (115 kg) empty weight limit. The Cloudster's standard
empty weight is 250 pounds (113 kg).

General
Specifications

Crew: One

Length: 16
ft 6 in (5.03 m)

Wingspan:
30 ft 0 in (9.14 m)

Height: 7
ft 0 in (2.13 m)

Wing Area:
138 sq ft (12.8 m²)

Unladen
Weight: 250 lb (113 kg)

Gross
Weight: 500 lb (227 kg)

Fuel
Capacity: 2.5 US gallons (9.5 liters)

Powerplant:
1 × Kawasaki 340-LC, 35 hp (26 kW)

Propellers:
Two-bladed wooden propellers

Performance

Maximum
speed: 60 mph (97 km/h, 52 knots)

Cruise
speed: 50 mph (80 km/h, 43 knots)

Stall
speed: 22 mph (35 km/h, 19 knots)

Range: 86
mi (139 km, 75 nautical miles)

Service
ceiling: 6,000 ft (1,800 m)

Rate of
climb: 650 ft/min (3.3 m/s)

Wing
loading: 3.6 lb/sq ft (18 kg/m²)

Build your
own Cloudster ultralight wooden airplane,

using
detailed, proven plans.

This
listing is for DIGITAL DRAWINGS ONLY – no physical products will be shipped.

The
Cloudster is a simple, lightweight, and efficient homebuilt airplane,
perfect
for aviation enthusiasts, experimental aircraft builders,
and amateur pilots
who enjoy classic wood construction.

✈ ️ What you'll
get

Digital
drawings

Technical
drawings and diagrams

Construction
views:

Drawings
suitable for building wooden airplanes

Files ready
for viewing, printing, and workshop use

📥 Delivery:

Instant
digital download after purchase.

📐 File formats

PDF files

Compatible
with most computers, tablets, and CAD software.

⚠ ️ IMPORTANT -
PLEASE READ

This is a
DIGITAL PRODUCT

PHYSICAL
drawings, parts, or materials are NOT INCLUDED

No shipping
required

You are
purchasing digital drawings only

Due to the
digital nature of this product, returns are not accepted

🛠️ Who is this for

✔ Hobby builders

✔ Ultralight and experimental
aviation enthusiasts

✔ Aviation enthusiasts

✔ DIY aircraft builders

✔ Educational and reference purposes

⭐ Why choose these drawings

Real,
proven Cloudster aircraft design

Clear and
detailed drawings

Perfect for
personal projects and education

Instant
access after payment

If you have
any questions, please message me before purchasing.

Thank you
for your interest and happy building! ✈ ️

This will go a long time out of my country. Write to me!

You can download it from GOOGLE disc,

Buying these drawings, you acknowledge that you have read this information!
